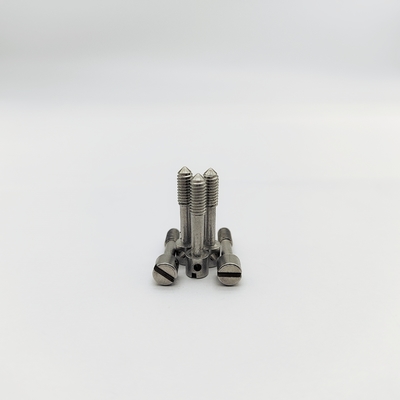

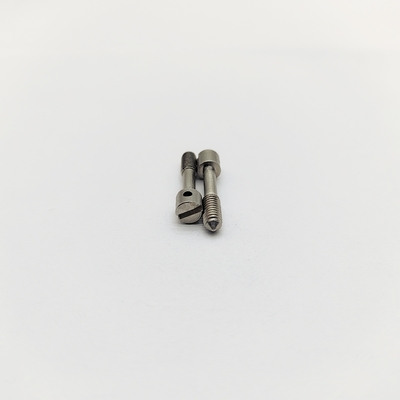

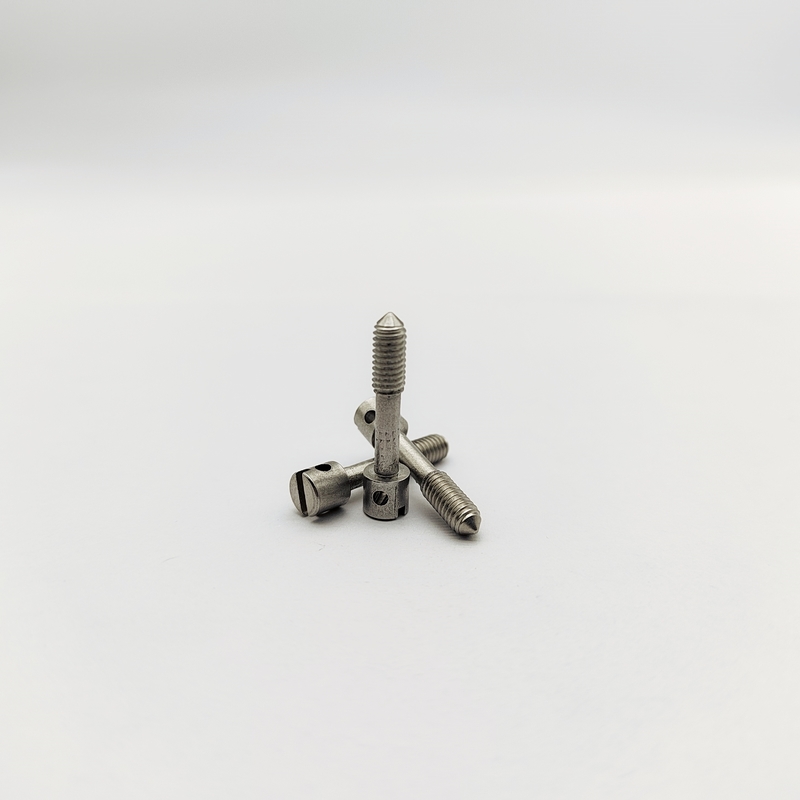

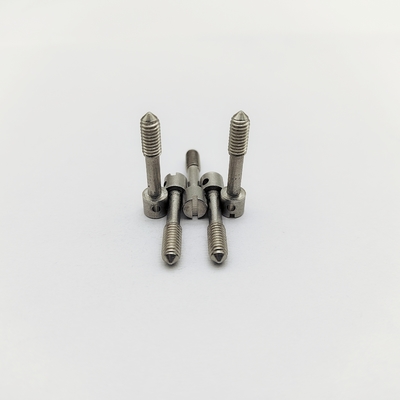

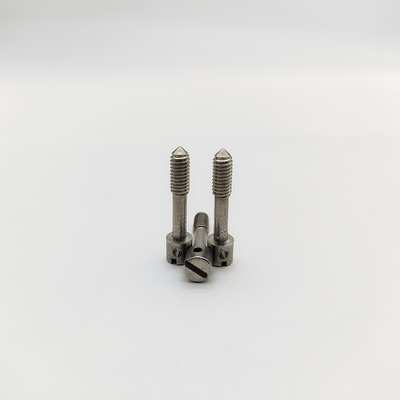

304 Stainless Steel Slotted Lead Sealing Screws M4 M5 M6 for Electric Meters
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | M4, M5,M6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Drive Style: | Slotted | Color: | Matte Grey, Customizable |
|---|---|---|---|
| Package: | Plastic Bag | Standard: | ISO, Non-standard |
| Production Process: | Cold Heading, Cold Forging | Length: | 12mm-30mm |
| Head Size: | M4, M5,M6 | Use: | For Electric Meters |
| Customize: | Can Customize As Your Drawing And Design | Affordable: | Yes |
| Material: | A2-70 Stainless Steel (304) | Quantity: | 50000 Pieces |
| Tooth Size: | Customizable | Rustproof: | Yes |
| Highlight: | 304 stainless steel electric meter screws,slotted lead sealing screws M4 M6,electric meter sealing screws with warranty |
||
Product Description
304 Stainless Steel Slotted Lead Sealing Screws for Electric Meters M4 M5 M6
Product Attributes
| Attribute | Value |
|---|---|
| Drive Style | Slotted |
| Color | Matte Grey, Customizable |
| Package | Plastic Bag |
| Standard | ISO, Non-standard |
| Production Process | Cold heading, cold forging |
| Length | 12mm-30mm |
| Head Size | M4, M5, M6 |
| Use | For electric meters |
| Customize | Can Customize As Your Drawing And Design |
| Affordable | Yes |
| Material | A2-70 Stainless Steel (304) |
| Quantity | 50000 Pieces |
| Tooth Size | Customizable |
| Rustproof | Yes |
Product Description
304 SS Slotted Lead Sealing Screws - Half Thread - Round Head with Hole - Utility Meter Security - M4/M5/M6
Tamper-evident slotted lead screws. 304 stainless steel, partial thread, blunted point. Round head with Ø1.8mm hole. Sizes M4x12mm to M6x25mm. Passivated finish. IEC 62055 compliant.
Secure critical assets with slotted lead sealing screws featuring a blunted self-tapping point and partial thread design for rapid installation. Machined from A2-70 stainless steel (304), these screws combine a standard slotted drive with a vertical security hole (Ø1.8mm) to enable lead seal attachment. Passivated finish resists weathering in outdoor electrical enclosures.
Technical Specifications
Thread Size: M4, M5, M6
Head Type: Round Head with Signal Hole
Total Length (L): M4: 12-20mm; M5: 16-25mm; M6: 20-30mm
Thread Length: Partial Thread (50-60% of L)
Head Diameter: M4: 7.0mm; M5: 8.5mm; M6: 10.0mm
Drive Type: Slotted (Slot Width: 0.8mm)
Material: A2-70 Stainless Steel (304)
Surface Treatment: Passivation (Matte Grey), Customizable
Point Type: Blunted Self-Tapping Point (120° tip angle)
Customization: Slot width/depth, thread ratio, hole diameter
Primary Uses & Applications
- Electricity meter sealing
- Water/gas valve security
- Transportation fare boxes
- Voting machine tamper evidence
- Regulatory compliance seals
How to Use
- Press blunt point against metal/plastic surface.
- Hand-tighten with slotted screwdriver until seated.
- Thread lead seal wire through head hole.
- Crimp seal with calibrated pliers
