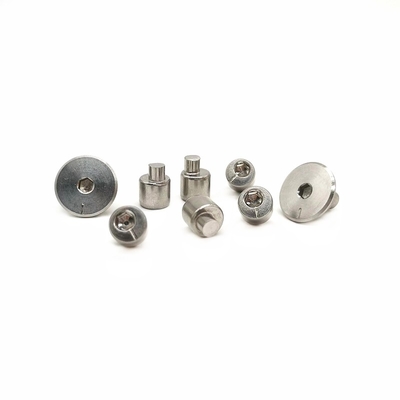

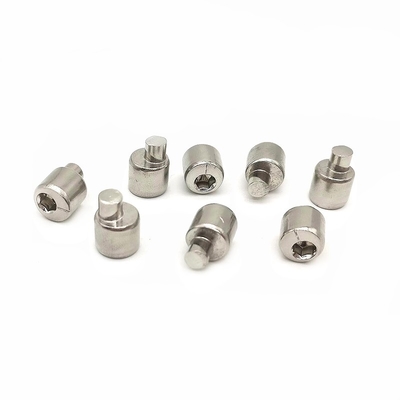

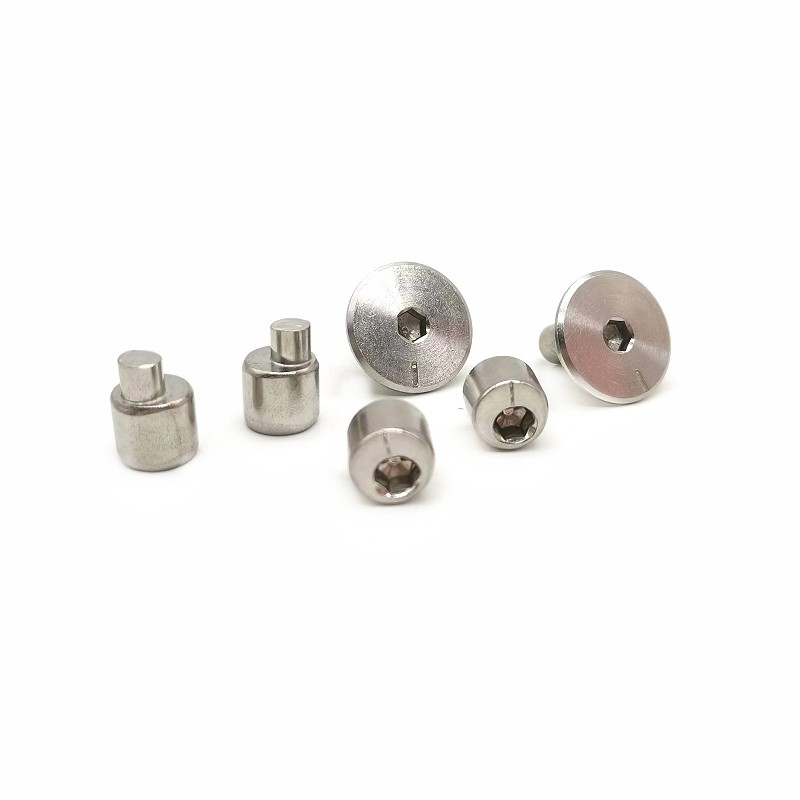

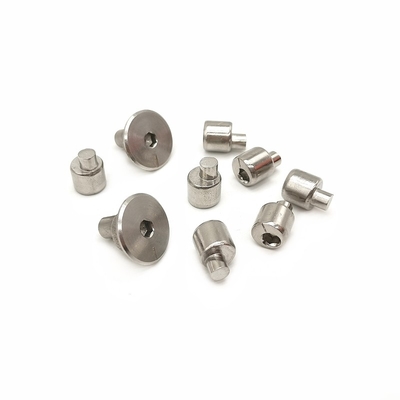

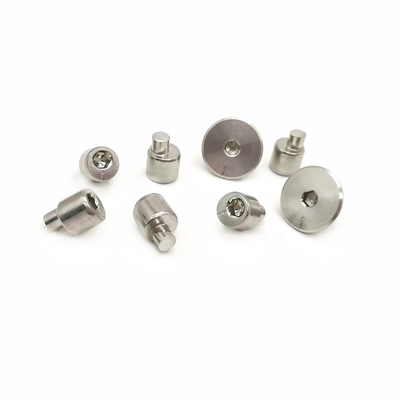

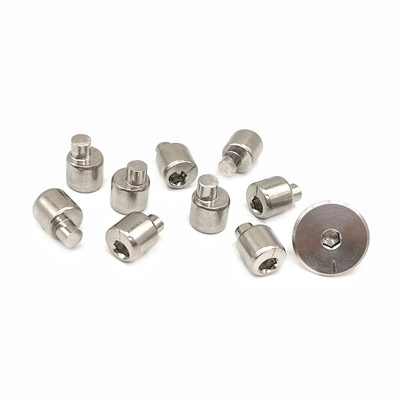

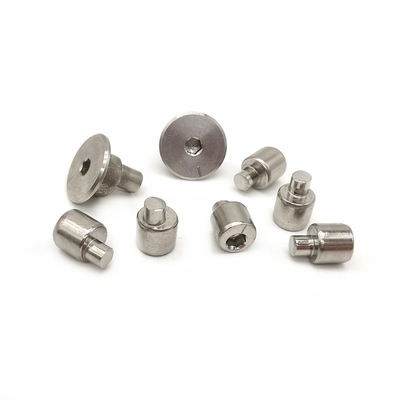

Precision Stainless Steel Rollenband Excenter Screw 304/316 Corrosion-Resistant Custom Sizes & Surface Finishes
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO, GB, BS, DIN, ANSI,JIS |
| Model Number: | 4.9*10.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000PCS |
|---|---|
| Price: | USD0.054/piece |
| Packaging Details: | Plastic bag 1 small box +outer carton +pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Material: | Stainless Steel: 201 | Production Process: | Cold Heading, Cold Forging |
|---|---|---|---|
| Surface Finish/treatment: | Polishing, Passivation | Size: | 4.9*10.5 |
| Package: | 1000PCS | Single: | 7.5g |
| Color: | Natural Color Of Stainless Steel | Head Size: | 9.5mm |
| Head Long: | 6.0mm | ||
Product Description
Our Stainless Steel Rollenband Excenter Screws are engineered for high-precision eccentric adjustment in harsh environments. Made from AISI 304/316 stainless steel, these screws offer superior corrosion resistance, durability, and load-bearing capacity, ideal for:
✔️ Industrial machinery alignment
✔️ Automotive assembly systems
✔️ Medical equipment adjustments
✔️ Marine and chemical applications
Key Features
✅ Material: AISI 304/316 stainless steel (optional 316L for acidic environments)
✅ Eccentricity Range: 0.5mm – 5.0mm (customizable)
✅ Surface Finishes: Mirror polish, electropolish, sandblasted, or passivated
✅ Thread Types: Metric, UNC/UNF, or custom threads
✅ Certifications: ISO 9001, RoHS compliant
Technical Parameters (Standard Specifications)
| Parameter | Details | Options |
|---|---|---|
| Material | AISI 430F/304/316 Stainless Steel | 316L, 17-4PH (on request) |
| Diameter (D) | M4 – M20 | Custom diameters available |
| Eccentricity (e) | 0.5mm – 5.0mm | ±0.02mm tolerance |
| Thread Length | 10mm – 100mm | Adjustable per order |
| Head Style | Hex socket, slotted, or knurled | Other designs acceptable |
| Surface Treatment | Electropolished (standard) | Mirror polish, sandblasted, PTFE coated |
| Hardness | 150-200 HV (304) / 180-220 HV (316) | Hardened versions up to 45 HRC |
| Temperature Range | -50°C to +300°C (316 resistant to 800°C) |
Why Choose Our Rollenband Excenter Screws?
