A4-70 Torx Coach Screws/ Marine Grade 316 Stainless/ Salt Water Resistant / Batch Orders Guanbiao Hardware
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | M6x20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Features: | Anti-theft, Anti-tampering, Corrosion Resistant | Thread Length: | Customizable |
|---|---|---|---|
| Material: | Stainless Steel | Drive Style: | Torx( Customizable ) |
| Thread Direction: | Right Hand | Finsh: | Galvanized |
| Finish: | Plain, Black Oxide, Zinc Plated, Passivated | Standard: | ISO, GB, BS, DIN, ANSI,JIS, Non-standard |
| Length: | Customizable | Customization: | Custom Sizes, Head Styles, Drive Styles Available |
| Size: | Various Sizes Available | Thread Type: | Machine, Self-Tapping, Wood |
Product Description

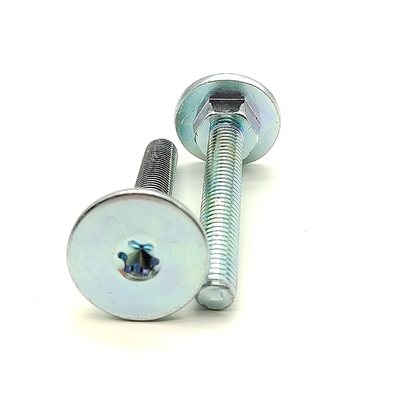

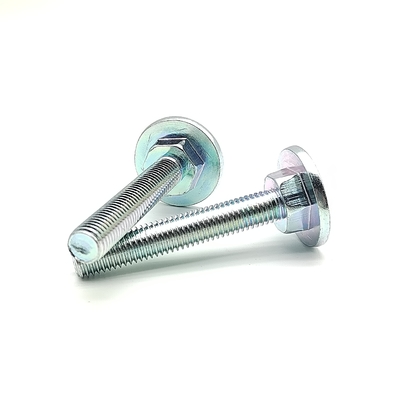

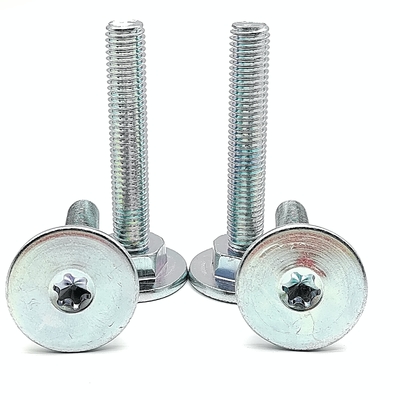

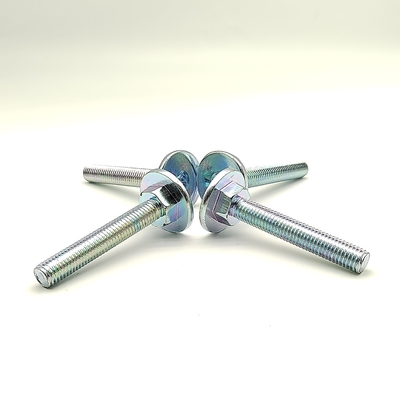

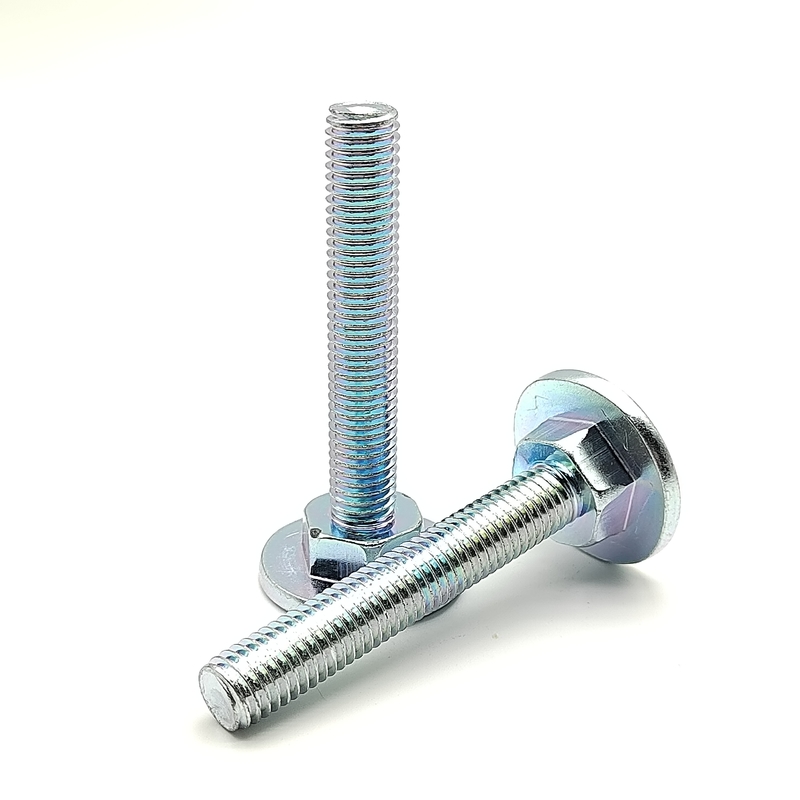

A4-70 Torx Coach Screws/ Marine Grade 316 Stainless/ Salt Water Resistant / Batch Orders Guanbiao Hardware
Marine-grade A4 (316) stainless steel Torx coach screws. Superior corrosion resistance for docks, boats & coastal structures. Torx drive ensures secure installation. Passivated finish.
Designed for demanding industrial applications, these Heavy-Duty Torx Carriage Bolts feature reinforced Torx Plus® drive (5-point star) for exceptional torque transmission and anti-tamper performance. The enlarged square neck provides superior grip in wood and metal, while the deep-driven recess resists stripping. Perfect for high-vibration environments and critical security installations.
TECHNICAL SPECIFICATIONS |
|
| Material | MaterialA4 / 316 Stainless Steel(1.4401 / 1.4436) |
| Drive Type | Torx (T-Series - e.g., T20, T25, T27, T30) |
| Sizes | Common: M6, M8, M10 (approx. 1/4", 5/16", 3/8"). Others: M12 |
| Lengths | Standard Range: 50mm, 60mm, 70mm, 80mm, 100mm, 120mm |
| Strength Grades | Typically A2-70, A4-70 (Metric - 700 MPa Min Tensile Strength). A2-80, A4-80 also available for higher strength |
| Thread | Partial Thread, Coarse Wood Thread |
| Point Type | Sharp Point or Self-Drilling Point (Tek Point - specify option) |
Primary Uses & Applications:
- Bridges, conveyor systems & structural steel frameworks
- Railway components and heavy transport equipment
- Theft-deterrent fixtures (e.g., utility boxes, street furniture)
- Marine and offshore installations
Surface Treatment/Finishes:
* **Passivation (Standard):** Essential chemical process removing free iron particles and enhancing the natural chromium oxide layer for maximum corrosion resistance.
* **Electropolishing:** Optional premium finish. Removes surface micro-imperfections, further enhances corrosion resistance, improves cleanability (ideal for marine/food contact areas), and provides a smooth, bright appearance.
* **Plain Mill Finish (2B):** Standard rolled finish after passivation. Functional and corrosion-resistant.
How to Use:
1. **Pre-drill:** Crucial for stainless steel in wood to prevent galling/seizing and ensure smooth driving. Drill a pilot hole slightly smaller than the screw's shank diameter. **Use sharp drill bits!** For self-drilling points (Tek), pre-drilling may be reduced/eliminated in softer woods or thin metal overlays.
2. **Lubricate:** Apply a **stainless steel specific anti-seize compound** (e.g., nickel-based) to the threads to drastically reduce friction and prevent galling (thread cold-welding).
3. **Align & Drive:** Insert screw, ensuring square neck engages properly. Use the **correct Torx bit** (e.g., T25 for M8). Drive at **moderate speed** with consistent pressure. Avoid excessive RPMs which cause heat and increase galling risk. Ensure the driver bit is fully seated and in good condition.
