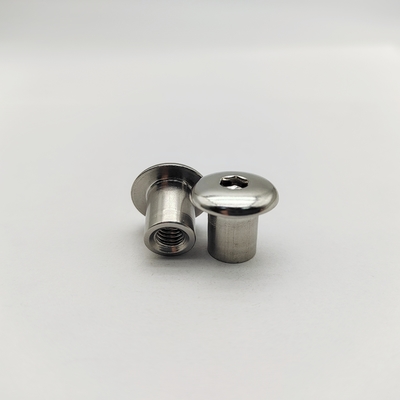

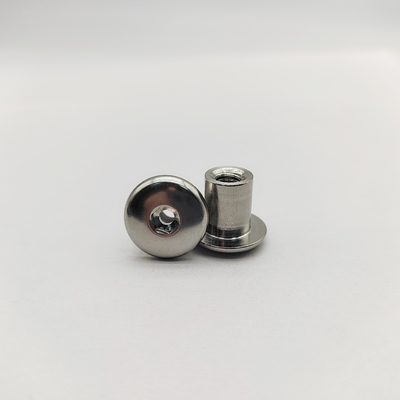

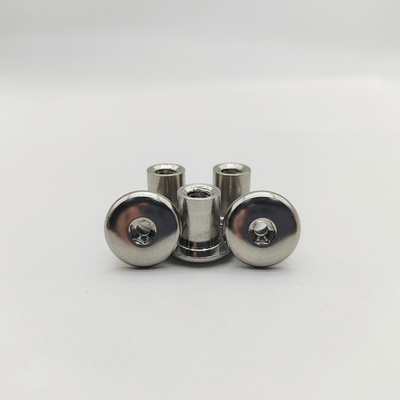

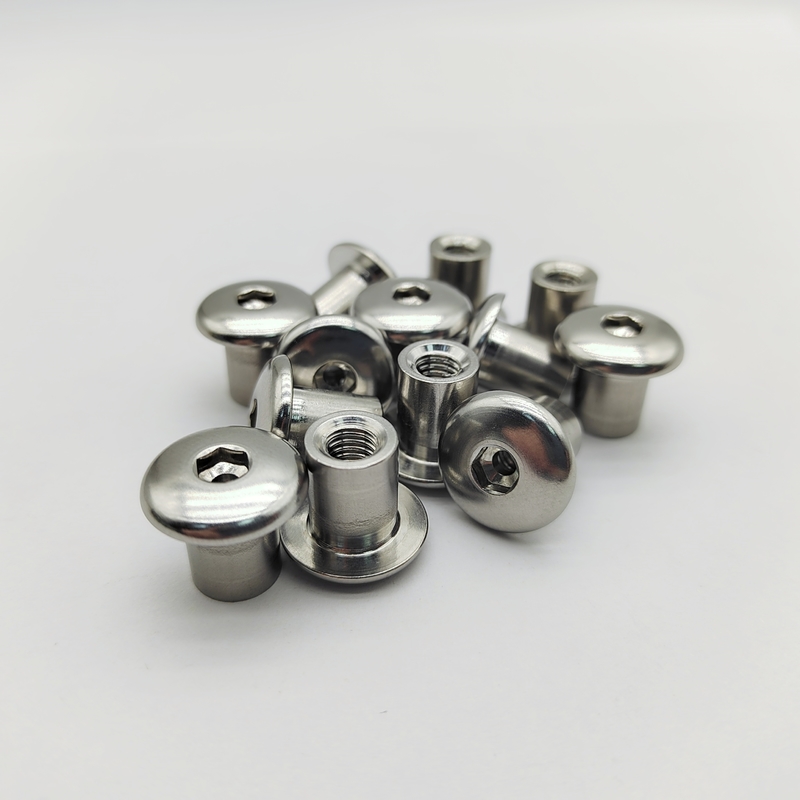

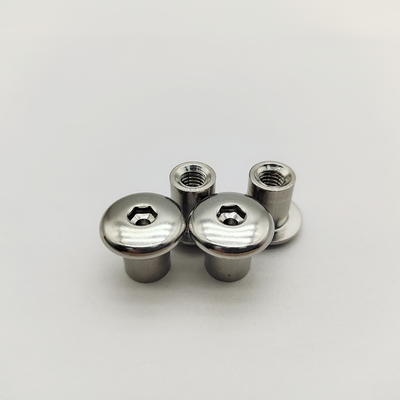

304 Stainless Steel Hex Socket Rivet Nuts M3 to M10 Smooth No Knurl
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | M3, M4, M5, M6, M8, M10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Shear Strength: | Varies Based On Size | Product Application: | Multilayer Plate Group |
|---|---|---|---|
| Head Style: | Round | Thread: | M3, M4, M5, M6, M8, M10 |
| Lead Time: | 15~20 Working Days | Finsh: | Passivation (Matte Finish) |
| Installation Method: | Riveting | Material: | Stainless Steel |
| Tolerant: | +/- 0.05mm | Dimension: | We Can Customise To Your Dimension |
| Tooth: | Full Tooth | ||
| Highlight: | 304 stainless steel rivet nuts,hex socket rivet nuts M3-M10,smooth no knurl rivet nuts |
||
Product Description
304 SS Hex Socket Rivet Nuts - Knurling-Free Design - Smooth Surface - A2 Stainless - M3 to M10
Product Attributes
| Attribute | Value |
|---|---|
| Shear Strength | Varies based on size |
| Product Application | Multilayer plate group |
| Head Style | Round |
| Thread | M3, M4, M5, M6, M8, M10 |
| Lead Time | 15~20 working days |
| Finish | Passivation (Matte Finish) |
| Installation Method | Riveting |
| Material | Stainless Steel |
| Tolerance | +/- 0.05mm |
| Dimension | We Can Customise to your dimension |
| Tooth | Full tooth |
Product Description
Corrosion-resistant hex socket rivet nuts with smooth cylindrical body. No knurl, 304 stainless steel. Sizes: M3-M10. Passivated finish. For panels 0.5-4mm thick. Custom lengths available.
Achieve clean, vibration-resistant threads in thin materials with knurling-free hex socket rivet nuts. Made from A2-70 stainless steel (304), these nuts feature a smooth cylindrical body to prevent surface damage during installation. The internal hex drive provides reliable tool engagement for flush mounting in electronics, automotive, and general industrial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Thread Size | M3, M4, M5, M6, M8, M10 |
| Thread Length | Full Thread (Equal to body length) |
| Body Style | Smooth Cylindrical (No Knurling) |
| Hex Size (AF) | H2.5 (M3), H3 (M4), H4 (M5), H5 (M6), H6 (M8) |
| Drive Type | Hex Socket (Internal Allen Drive) |
| Material | A2-70 Stainless Steel (304) |
| Surface Treatment | Passivation (Matte Finish) |
| Panel Thickness | 0.5-4.0mm |
| Customization | Non-standard lengths, reduced head diameters |
Primary Uses & Applications
- Electronics enclosures
- Automotive sheet metal assemblies
- HVAC duct mounting
- Furniture frame reinforcement
- Plastic housing thread inserts
Installation Instructions
- Drill hole matching nut OD (e.g., 6.4mm for M4 nut)
- Insert nut into hole
- Engage hex mandrel tool (e.g., H4 for M5 nut)
- Pull tool at 2,000-3,000N force to deform body
- Remove tool - nut locks permanently
