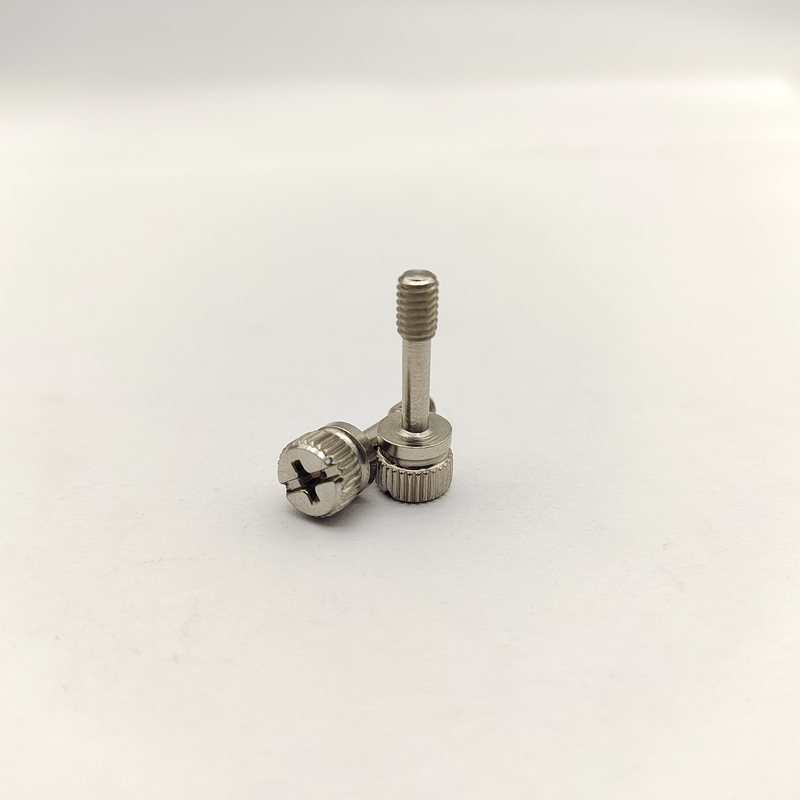

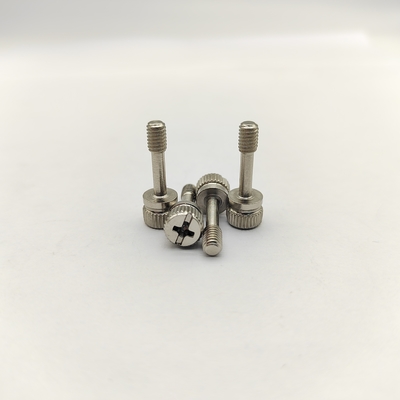

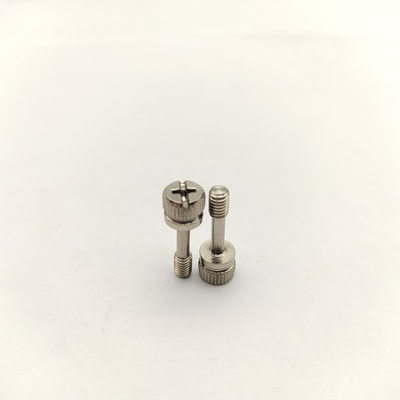

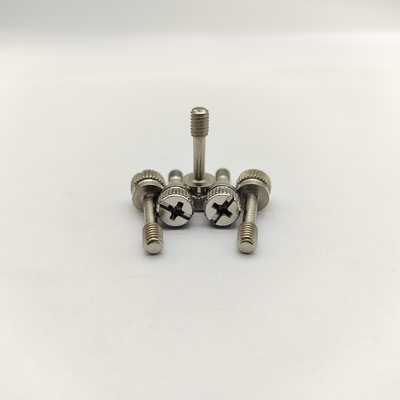

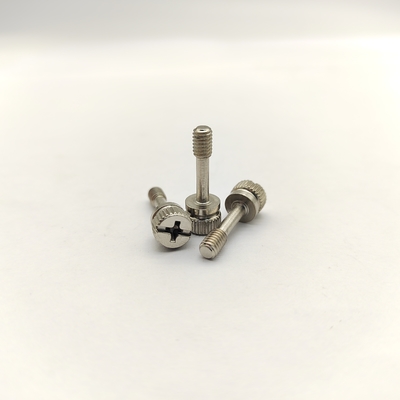

316 Stainless Steel Knurled Captive Screws Combo Drive for Medical Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | M5*20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Shape Type: | Round Head | Size: | Various Sizes Available |
|---|---|---|---|
| Production Process: | Cold Heading, Cold Forging | Thread: | M2 , M2.6, M3 , M3.5, M4, M5 |
| Product Material: | Stainless Steel | Rust Proof: | Yes |
| Oem: | Yes, Welcome, According To Your Drawing | Trade Term: | EXW |
| Shape: | Flat Head | Screw Length: | 10 - 150mm |
| Total Length: | 40.0mm | Case Hardness: | HV210-270 |
| Color: | Silvery White / Nature | ||
| Highlight: | 316 stainless steel knurled captive screws,medical equipment combo drive screws,stainless steel machine screws with warranty |
||
Product Description
Knurled Captive Screws A2 Combo Phillips/Slotted Server Rack & Enclosure
Premium A4-70 knurled captive screws for corrosive/clean environments. Combo drive, captive design. Passivated or electropolished. For medical devices, lab & food processing equipment. Hygienic.
Meet the demanding hygiene and corrosion resistance requirements of medical, laboratory, and food processing equipment with our **A4 Stainless Steel Knurled Captive Screws**. Crafted from A4-70 (316) stainless steel, they offer **superior resistance** to salt water, chemicals, acids, and frequent cleaning agents. The **partially knurled cylindrical head** enables easy, frequent access, while the **smooth lower section** minimizes crevices for easy cleaning. The **Phillips/Slotted combo drive** ensures secure installation. The **captive washer system** prevents screw loss, critical in sterile environments. Available passivated or electropolished for maximum smoothness and cleanability.
TECHNICAL SPECIFICATIONS |
|
| Material | A4-70 Stainless Steel (316)** (ISO 3506) |
| Drive Type | Phillips/Slotted Combination (PH2 Phillips + 3-4mm Slotted) |
| Head Style | Cylindrical Head (Smooth lower shank, **Knurled upper grip section** - Fine groove knurl) |
| Sizes (Diameter x Length): | Common: * M4 x 8mm, 10mm, 12mm, 16mm (Knurl Dia: ~6-7mm) * M5 x 10mm, 12mm, 16mm, 20mm (Knurl Dia: ~7-8mm) * M6 x 12mm, 16mm, 20mm, 25mm (Knurl Dia: ~9-10mm) |
| Surface Finish | Passivated (Standard)** or **Electropolished (EP)** (Recommended for high hygiene) |
| Panel Thickness Range | 1.0mm - 3.0mm. |
Primary Uses & Applications:
* Medical device housings & access panels.
* Laboratory equipment & analyzers.
* Pharmaceutical processing & packaging machinery.
* Food & beverage processing equipment.
* Biotech & cleanroom instrumentation.
* Marine scientific equipment.
* Chemical handling systems.
* Any application requiring frequent access, high corrosion resistance, and easy cleaning/sanitization.
Surface Treatment/Finishes:
* **Passivation (Standard):** Mandatory for corrosion resistance. Removes free iron.
* **Electropolishing (Highly Recommended):** Significantly smoothes surfaces (Ra < 0.4 µm), removes micro-imperfections, enhances corrosion resistance, improves cleanability, reduces bacterial adhesion, and provides a bright, easy-to-inspect finish. Compliant with FDA, USDA, 3-A Sanitary Standards for hygienic applications.
How to Use:
1. **Panel Prep:** Install **A4 stainless steel captive receptacles** (threaded inserts/standoffs) into the frame. Ensure material compatibility.
2. **Insert Assembly:** Insert the captive screw assembly through the panel hole.
3. **Installation (Tool):** Use a **clean PH2 or slotted driver** to tighten the screw securely. Achieve metal-to-metal contact for grounding if needed. *Follow sanitized handling procedures.*
4. **Tool-Less Access:** For routine access, **hand-tighten/loosen using the knurled grip**. The captive design prevents screws from falling into sensitive areas.
5. **Cleaning:** The smooth surfaces (especially electropolished) and minimized crevices allow for effective cleaning, wiping, spraying, or autoclaving (check EP specs). No threads are exposed when tightened.
6. **Inspection:** The bright EP finish allows easy visual inspection for damage or contamination.
