Product Details:
|
| Material: | SS302,SS304,SS316 | Production Process: | Cold Heading, Cold Forging |
|---|---|---|---|
| Surface Finish/treatment: | Polishing, Passivation | Size: | M5x14 |
| Thread Type: | Machine Thread | Package: | Small Box, Small Color Box, Export Carton, And Put On Strong Wood Pallet |
| Single: | 8.38g | ||
| High Light: | M5x14 ss machine screws,Passivated torx countersunk machine screws,torx countersunk machine screws |
||
Stainless Steel Torx Machine Screw SS316 Torx Machine Screw SS304 Torx Machine Screw
| DIN912 Torx screw specification table (coarse teeth) Unit: mm | |||||||||
| US diameter | mm diameter | Number of teeth | Tooth diameter | rolling diameter | Head diameter | thick head | Hexagonal | Hex hole depth | Plum blossom hole |
| #4 | 2.85 | 40 | 2.70-2.82 | 2.36-2.40 | 4.47-4.65 | 2.74-2.85 | 3/32 | 1.30 | T10 |
| #5 | 3.18 | 40 | 3.03-3.15 | 2.69-2.72 | 5.03-5.21 | 3.07-3.18 | 3/32 | 1.45 | |
| #6 | 3.51 | 32 | 3.33-3.48 | 2.91-2.95 | 5.54-5.74 | 3.40-3.51 | 7/64 | 1.63 | T10 |
| #8 | 4.17 | 32 | 3.99-4.14 | 3.57-3.60 | 6.65-6.86 | 4.04-4.17 | 9/64 | 1.96 | T25 |
| #10 | 4.83 | 24 | 4.62-4.80 | 4.05-4.09 | 7.70-7.93 | 4.70-4.83 | 5/32 | 2.29 | T27 |
| #12 | 5.49 | 24 | 5.28-5.46 | 4.70-4.75 | |||||
| 1/4 | 6.35 | 20 | 6.12-6.32 | 5.45-5.50 | 9.27-9.53 | 6.20-6.35 | 3/16 | 3.05 | T30 |
| 5/16 | 7.94 | 18 | 7.69-7.91 | 6.93-6.98 | 11.61-11.91 | 7.77-7.92 | 1/4 | 3.84 | T45 |
| 3/8 | 9.53 | 16 | 9.25-9.49 | 8.40-8.45 | 13.97-14.28 | 9.35-9.53 | 5/16 | 4.62 | |
| 7/16 | 11.11 | 14 | 10.82-11.08 | 9.83-9.89 | 16.31-16.66 | 10.92-11.13 | 3/8 | 5.41 | |
| 1/2 | 12.70 | 13 | 12.39-12.66 | 11.32-11.39 | 18.67-19.05 | 12.50-12.70 | 3/8 | 6.22 | |
| 9/16 | 14.29 | 12 | 13.96-14.25 | 12.80-12.87 | |||||
| 5/8 | 15.88 | 11 | 15.53-15.83 | 12.80-12.87 | 23.39-23.83 | 15.65-15.88 | 1/2 | 7.80 | |
| M2 | 2.00 | 0.40 | 1.89-1.98 | 1.67-1.70 | 3.62-3.80 | 1.86-2.00 | 1.52-1.56 | 1.00 | |
| M2.5 | 2.50 | 0.45 | 2.38-2.48 | 2.13-2.16 | 4.32-4.50 | 2.36-2.50 | 2.02-2.06 | 1.10 | |
| M3 | 3.00 | 0.50 | 2.87-2.98 | 2.60-2.63 | 5.32-5.50 | 2.86-3.00 | 2.25-2.52 | 1.30 | T10 |
| M4 | 4.00 | 0.70 | 3.84-3.98 | 3.45-3.49 | 6.78-7.00 | 3.82-4.00 | 3.02-3.08 | 2.00 | T20 |
| M5 | 5.00 | 0.80 | 4.83-4.98 | 4.38-4.43 | 8.28-8.50 | 4.82-5.00 | 4.02-4.10 | 2.50 | T25 |
| M6 | 6.00 | 1.00 | 5.82-5.97 | 5.25-5.30 | 9.78-10.00 | 5.70-6.00 | 5.02-5.14 | 3.00 | T30 |
| M8 | 8.00 | 1.25 | 7.79-7.96 | 7.07-7.12 | 12.73-13.00 | 7.64-8.00 | 6.02-6.14 | 4.00 | T45 |
| M10 | 10.00 | 1.50 | 9.77-9.96 | 8.91-8.97 | 15.73-16.00 | 9.64-10.00 | 8.03-8.18 | 5.00 | |
| M12 | 12.00 | 1.75 | 11.76-11.95 | 10.73-10.79 | 17.73-18.00 | 11.57-12.00 | 10.03-10.18 | 6.00 | |
| M14 | 14.00 | 2.00 | 13.74-13.95 | 12.56-12.63 | 20.67-21.00 | 13.57-14.00 | 12.03-12.21 | 7.00 | |
Stainless Steel Torx Machine Screw picture details display
Unit: mm

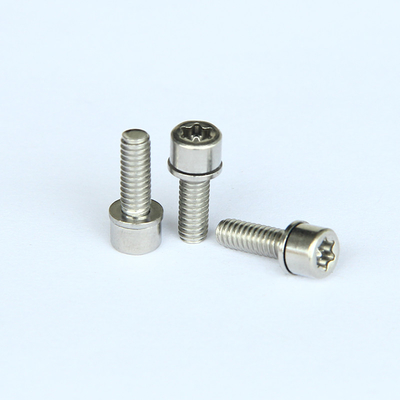

Passivated Ss Machine Screws , Torx Countersunk Machine Screws M5x14

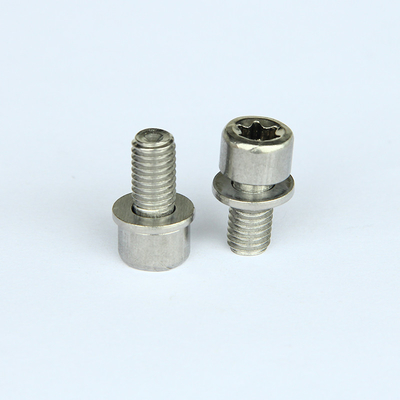

Passivated Ss Machine Screws , Torx Countersunk Machine Screws M5x14
Our stainless steel torx screws are in stock all year round
| Product Name | Stainless Steel 304 Cylindrical Head Torx Screws |
| Specifications(metric system) | M5*14 |
| M6*16 | |
| Specifications (US) | 4#-40*5/8 |
| 4#-40*1/4 | |
| 6#-32*1/4 | |
| 8#-32*1/4 | |
| 10#-24*9.4 | |
| 1/4*31 | |
| 1/4*22 | |
| 1/4-20*19 | |
| 5/16*32 | |
| 5/16*5/8 | |
| Stainless steel screws of various sizes and specifications can be customized according to customer drawings | |
Factory environmental display
Finish
For a service with long time , self tapping screws are plated in finishing , stainless steel screws can be not plated sometimes .
1 , Zinc
This is popular finish and various colors for choice . The resistance of rust is good and eco-friendly .
2 , Nickel
Nickel finish makes the surface of the screws will more bright and hardened and the performance of screws will be improved .
3 ,Passivation
Most stainless steel screws will be passive after forming so that to stop screws to be rusted .
4 , Tin
It is very perfect to be anti-rust , and widely used to components .
5 , Brass finish
Available for stainless steel screws and carbon steel screws .
6 , Dacromet
Be used for screws with big sizes and can stop screws to be rusted long time even under bad surroundings .
All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +86 13423026460
