Product Details:
|
| Material: | Stainless Steel | Production Process: | Cold Heading |
|---|---|---|---|
| Size: | M6*150 M6*135 | Tolerant: | +/- 0.05mm |
| Surface Treatment: | Cleaning Passivation | Package: | Plastic Bag 1 Small Box +outer Carton +pallets |
| After-sales Service: | We Will Follow Up Every Customer And Solve All Your Problems Satisfied After Sales | Service: | We Can Produce Standard Ones As Well As Non-standard Ones, Customer Design Are Welcome. |
| MOQ: | 20000 Pieces | ||
| High Light: | A2-70 Extra Long Machine Screws,DIN963 Extra Long Machine Screws,A2-70 hex head machine screw |
||

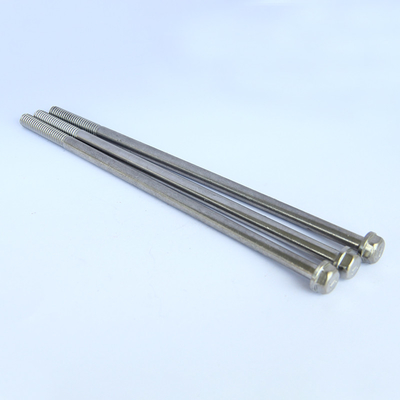

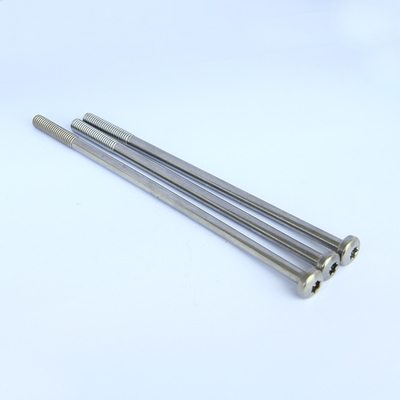

A2-70 Stainless Steel Car Motor Screw Non-standard Motor Screws Extra-long Hexagon Glange Screws Sor Extra-long Engines
| Product Description |
| Motor screws are also called long screws. The material is stainless steel 304. We can customize screws of different materials, such as long and short, large and small, including screws with deep holes and flat screws. |
| Size:M6*135and M6*150 |
| Material: SS302,SS304,SS316 |
| Standard: DIN7971, DIN7981, DIN7972, DIN7982, DIN7983, DIN7504, DIN571, DIN963, DIN964, DIN965, DIN966, DIN7985, DIN84, DIN85 |
| Surface; Cleaning passivation |
| Package: export carton, and put on strong wood pallet |
| We can produce standard ones as well as non-standard ones, customer design are welcome. |

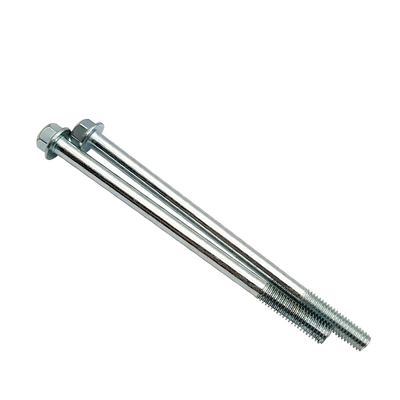

M6*150 Hex With Flange Bolt
M6-M20 Hex With Flange Bolt
| material | SS,SUS304,stainless steel |
| Spot size | M6*135 or M6*150 |
| tooth length | min20.0 |
| Can be customized size | M1.0-M20.0 |
| Can be customized length | 2.0mm-300.0mm |
| surface treatment | cleaning passivation |
| Salt spray test | Neutral salt spray test up to 200H |
| Groove | plum bossom or Hex head |
| slot number | T30 |
| scope of application | Widely used in micro motors, reducers, lawn mowers and servo motors |
| MOQ | 20000PCS |
| lead time | 10-15 day |
| payment method | 50% deposit in advance, the balance will be shipped |
Factory environmental display
Multi-position cold forging machine, the maximum can be customized M20, the minimum can be customized M1.0, the longest can be customized 300mm
Four advantages of choosing Guanbiao Hardware
1. More than 20 years of screw production experience and non-standard screw custom development experience, provide you with cost-effective screws, and help you solve the fastener supply chain
2. Precise production equipment. The company introduces all imported equipment from Taiwan to produce precision screws and hardware accessories for you
3. A complete management system, each batch of products that leave the factory undergoes multiple strict monitoring
4. System supporting services, so you have no worries
