GB Standard Eccentric Adjustment Screw M4x12 Polished SUS304 Material Wind Window Fitting Screws Eccentric Clamp Bolt
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO, GB, BS, DIN, ANSI,JIS |
| Model Number: | M4*12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000PCS |
|---|---|
| Price: | USD0.054/piece |
| Packaging Details: | Plastic bag 1 small box +outer carton +pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Material: | Stainless Steel: 302,304,316 | Production Process: | Cold Heading, Cold Forging |
|---|---|---|---|
| Surface Finish/treatment: | Polishing, Passivation | Size: | 1/4-20*1" |
| Thread Type: | Machine Thread | Package: | Small Box, Small Color Box, Export Carton, And Put On Strong Wood Pallet |
| Single: | 8.38g | ||
| Highlight: | GB Eccentric Adjustment Screw,M4x12 Eccentric Adjustment Screw,SUS302 stainless steel hinge screws |
||
Product Description
Stainless Steel Eccentric Screw Eccentric Adjustment Screw Stainless Steel Eccentric Adjustment Screw For Doors And Wind Door and window fitting screws
Eccentric screw for car rear axle adjustment
| material | SS304 |
| head diameter | 9.5mm |
| head height | 8.5mm |
| Groove | hexagon |
| Hexagonal | 4.0mm |
| Hex Effective Depth | 3.7mm |
| rod diameter | 4.9mm |
| total length | 13.0mm |
| Eccentricity | 1.3mm |
| application | broken bridge window |

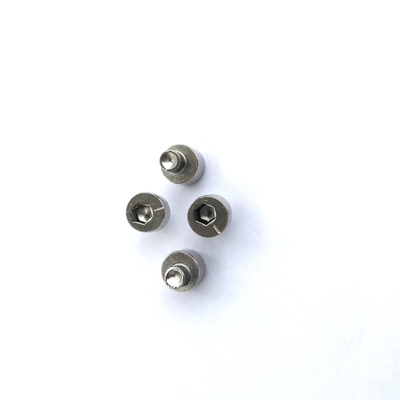

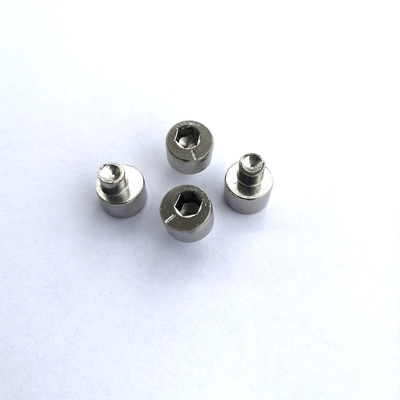

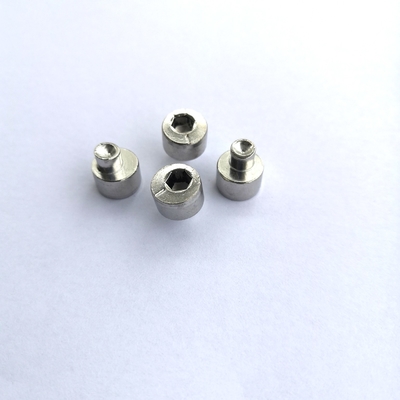

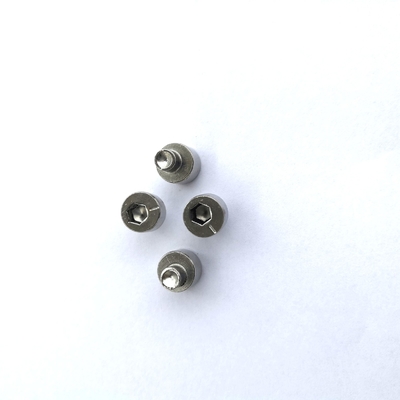

Stainless Steel Eccentric Screw picture details display
Lock rubber chain rivets
Unit: mm
Factory environmental display
Precision screw production workshop
Non-standard custom screws, hardware product production workshop
All machines are multi-position cold heading equipment imported from Taiwan, with two dies and four punches,
three dies and six punches, four dies and four punches, four dies and eight punches, six dies and six punches
Automatic thread rolling machine
CNC machining center
Fully automatic hardware secondary processing machine
Fully automatic CCD detection equipment
Four advantages of choosing Guanbiao Hardware
1. More than 20 years of screw production experience and non-standard screw custom development experience, provide you with cost-effective screws, and help you solve the fastener supply chain
2. Precise production equipment. The company introduces all imported equipment from Taiwan to produce precision screws and hardware accessories for you
3. A complete management system, each batch of products that leave the factory undergoes multiple strict monitoring
4. System supporting services, so you have no worries
All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +86 13423026460
