Product Details:
|
| Material: | Carbon Steel、Stainless Steel: 201,303,304,316,410 | Size: | M4*46 According To The Drawing Provided By The Customer. |
|---|---|---|---|
| Standard: | ISO, GB, BS, DIN, ANSI,JIS, Non-standard | MOQ: | 200000 Pieces |
| Production Process: | Cold Heading, Cold Forging, CNC Machining, CNC Turning, CNC Milling, Drilling, Tapping, Grinding, Wire Cutting | Service: | We Can Produce Standard Ones As Well As Non-standard Ones, Customer Design Are Welcome. |
| Thread Coverage: | Half Teeth | Head Type: | With Hole |
| Finsh: | Galvanized | Customize: | Can Customize As Your Drawing And Design |
| High Light: | SS Electric Meter Sealing Screws,DIN404 Electric Meter Sealing Screws,SS Phillips Drill Cylindrical Head |
||
Phillips Drill Cylindrical Head DIN404 Steel Winch Sealed Meter Screws
Our custom screws , bolts,pins,shatf are widely used in a variety of products, including consumer electronics, DVD players, mobile phones, computers, printers, tablets, power tools, widely used in household appliances, telecommunications, computer imaging equipment, and mini products. Our Sealing screws are available in a variety of grades, materials, and finishes, in metric and inch sizes. Guanbiao hardware is able to manufacture custom Screws to exact customer specifications on request. Contact us or submit your drawing to Guanbiao hardware to receive a quotation.
Size Table
| d | p | DK(max) | DK(min) | K(max) | K(min) | T(max) | T(min) |
|---|---|---|---|---|---|---|---|
| M2 | 0.4 | 3.8 | 3.68 | 3.3 | 2.7 | 0.9 | 0.7 |
| M2.5 | 0.45 | 4.5 | 4.38 | 3.38 | 3.12 | 1 | 0.8 |
| M3 | 0.5 | 5.5 | 5.38 | 4.38 | 3.12 | 1.25 | 1 |
| M3.5 | 0.6 | 6 | 5.88 | 4.88 | 4.12 | 1.5 | 1.2 |
| M4 | 0.7 | 7 | 6.85 | 5.38 | 4.62 | 1.7 | 1.4 |
| M5 | 0.8 | 8.5 | 8.35 | 6.95 | 6.05 | 2 | 1.7 |
| M6 | 1 | 10 | 9.85 | 8.45 | 7.55 | 2.6 | 2.2 |
| M8 | 1.25 | 13 | 12.82 | 10.45 | 9.55 | 3.2 | 2.7 |

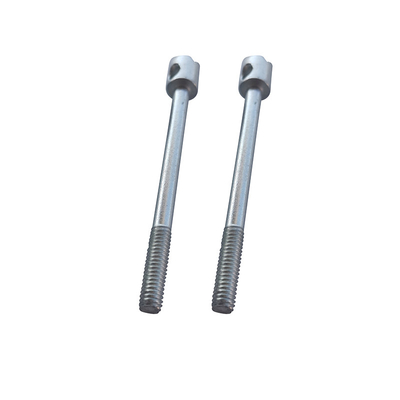

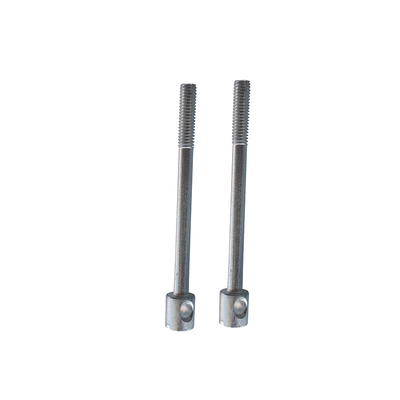

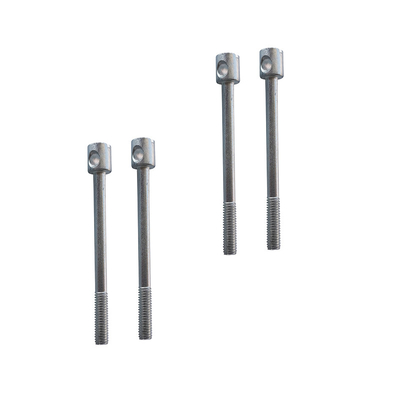

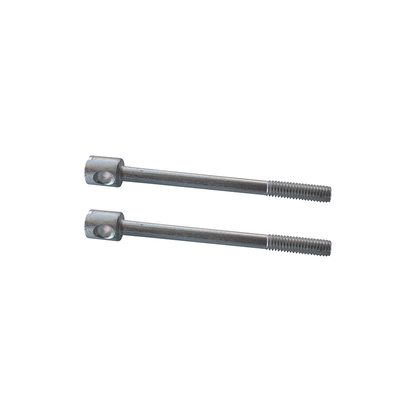

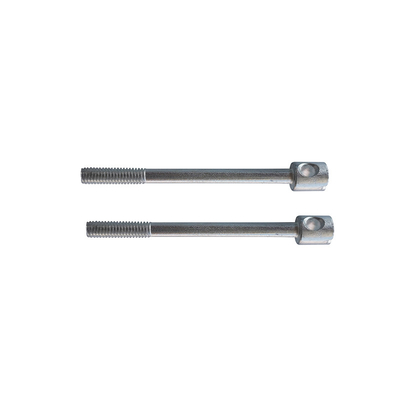

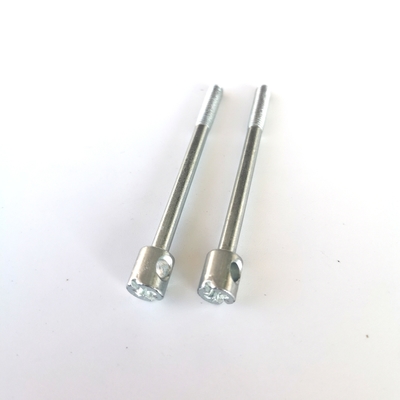

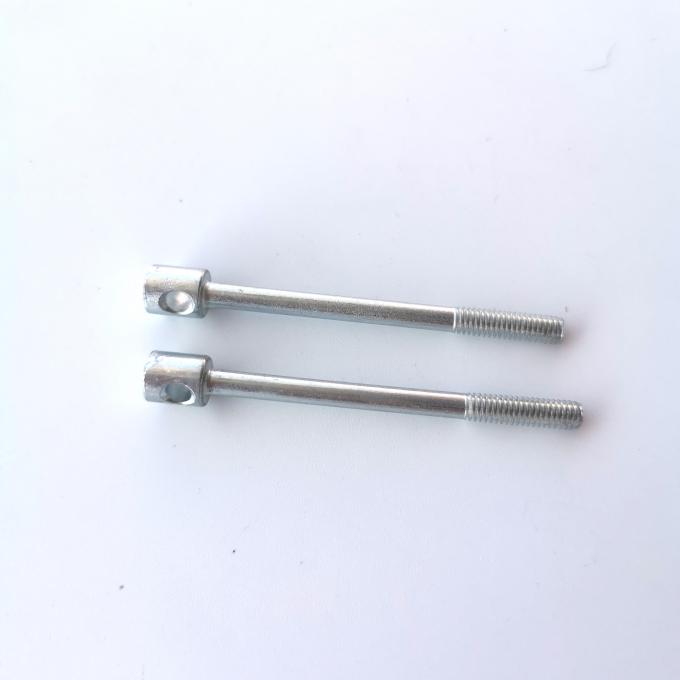

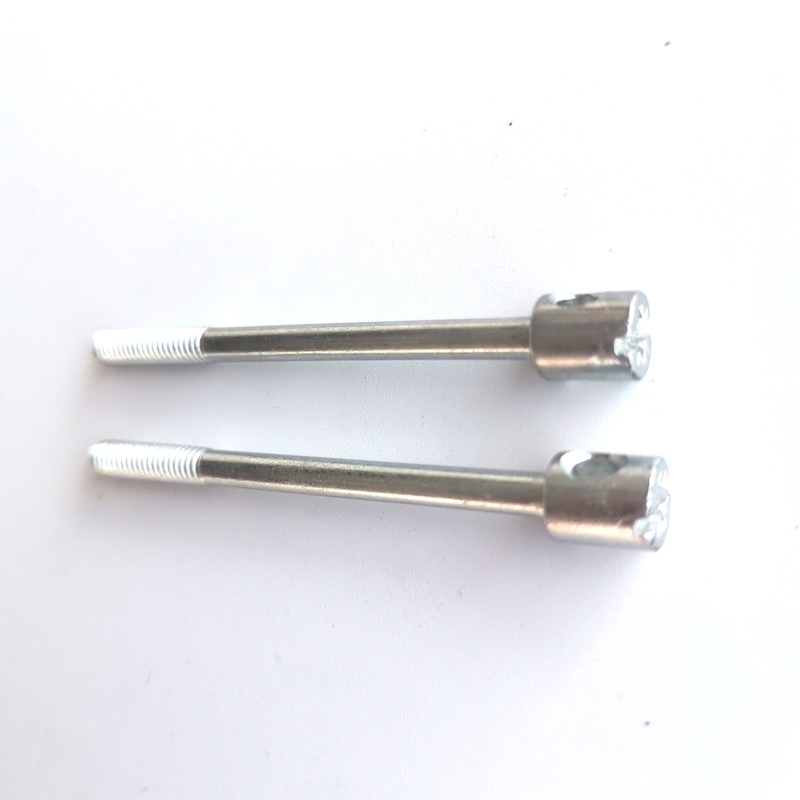

SS304 cross hole meter screw Product image presentation
Factory environmental display
SS304 Hole Screw production workshop
Non-standard custom screws, hardware product production workshop
Factory testing equipment
Mold warehouse display
Cold Heading Advantage
1, production process without waste, save material cost, especially precious metals and small head rod products.
2, through extrusion molding, maximum retention of material metal streamline, not easy to break.
3, through cold work hardening, the material metal composition arrangement dense, to achieve the advantages of good tensile strength, high hardness, high torsion.
Fully automated production saves a lot of labor costs.
5, can produce M1.0-M20 products, the head can achieve 40.0mm, the longest can achieve 300mm.
6, Taiwan imported equipment, high precision, multi-power equipment can produce complex shape of hardware.
7, the material is more environmentally friendly, such as 304 stainless steel is food grade material, has good environmental protection and corrosion resistance.
8, surface treatment, high finish, good adhesion, more easy to coating.
All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +86 13423026460
