Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper

Certification
China Dongguan Guanbiao Hardware Products Co., LTD certification
I'm Online Chat Now

Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper

Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper
Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper

Large Image :  Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper

Product Details:
Place of Origin: China
Brand Name: guanbiao
Certification: ISO, GB, BS, DIN, ANSI,JIS
Model Number: M4*6*6.35
Payment & Shipping Terms:
Minimum Order Quantity: 20000PCS
Price: Negotiable
Packaging Details: Plastic bag 1 small box +outer carton +pallets
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 10000PCS/day

Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper

Description
Material: Lead-Free Copper Production Process: CNC Machining, CNC Turning, CNC Milling, Drilling, Tapping, Grinding, Wire Cutting
Surface Finish/treatment: Zinc Plating, Nickel,Gilded , Silver, Chromium, Anodizing, Sandblasting, Painting, Powder Coating, Silk Screen, Polishing, Passivation, Laser Engraving Drawing Format: Jpg/.pdf/.dxf/.dwg/.igs./.stp/x_t. Etc
Tolerant: +/- 0.05mm Size: 6.35mm*6*M4
Bore: Holes
High Light:

Injection Molding Brass Insert Nut

,

Brass Knurled Thread Insert Nuts

,

0.05mm Tolerant Thread Insert Nuts

Brass Insert Nut Injection Molding Brass Knurled Thread Inserts Nuts Lead-Free Copper Nut​



Diameter (Nominal): M4
Thread Pitch: 1.0
Diameter (Dimension): 6.35mm
Length (Nominal): 6.0mm
Product Class: Internally Threaded Fasteners
Order: Specialty Nuts
Bore holes
Category: Brass Nuts
System of Measurement: centimeter
Brand: Guanbiao
Thread Length: Full Thread
Thread Direction: Right-Hand Thread
Material: Lead-free brass
Coating: True color

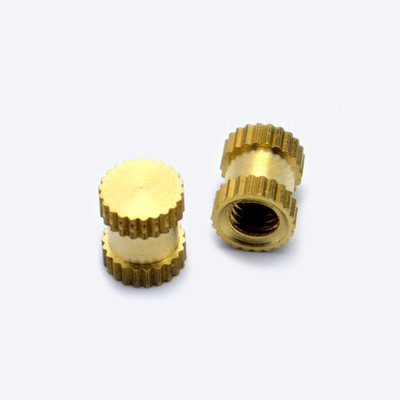

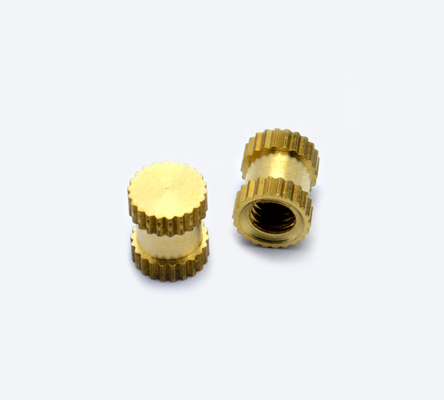

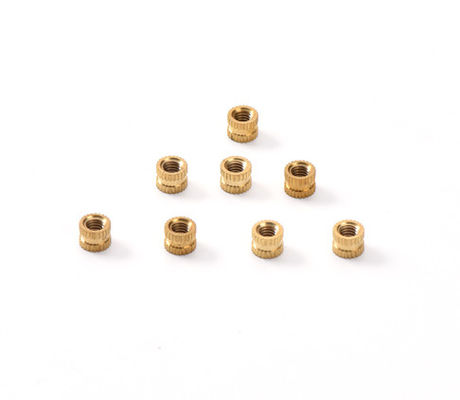

Product image presentation



Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper 0Copper Insert



Our stock of straight pattern lead-free copper nuts are as follows:



M2.5*5*3.5 (Note: The outer diameter is 3.5mm)
M3*8*4.8    (Note: The outer diameter is 4.8mm)
M4*5*6.35  (Note: The outer diameter is 6.35mm)
M4*6*6.35  (Note: The outer diameter is 6.35mm)



Mold warehouse display



Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper 2



Factory environmental display



Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper 3



Factory testing equipment



Injection Molding Brass Knurled Thread Insert Nuts Lead Free Copper 4



Fast Facts:

Space- and weight-saving design.
Two-piece design provides full threads through entire length of insert.
Eliminates machine chips and oil residue that could contaminate molded product.
Unique counterbore positions insert over molding pin and allows for easy bolt entry.
Controlled minor diameter reduces insert movement during molding for accurate alignment.
Insert flange provides a large bearing surface.
Insert design ensures optimum strength performance.



All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +00886 13423026460
