Product Details:
|
| Material: | Steel C1008, C1012, C1022 | Production Process: | Cold Heading, Cold Forging |
|---|---|---|---|
| Surface Finish/treatment: | Protection Blue Zinc | Tolerant: | +/- 0.05mm |
| Lead Time: | 10~15 Working Days | Size: | M6*10 |
| Single: | 10.5g/pcs | ||
| High Light: | C1008 Steel T Nuts,Phosphated Plated Steel T Nuts,C1012 Non Standard Fastener |
||

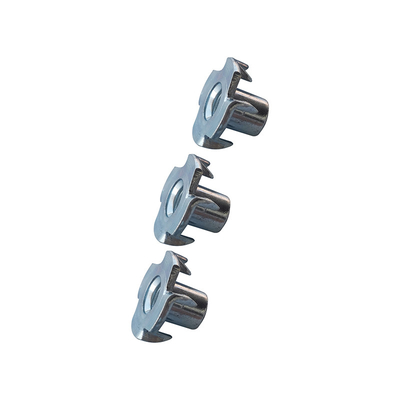

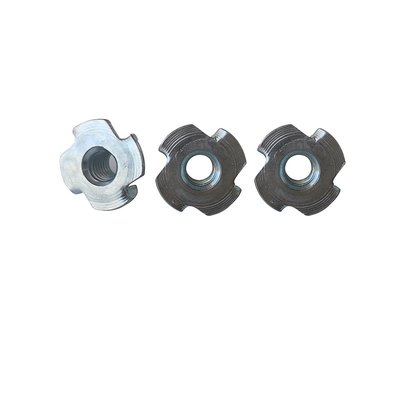

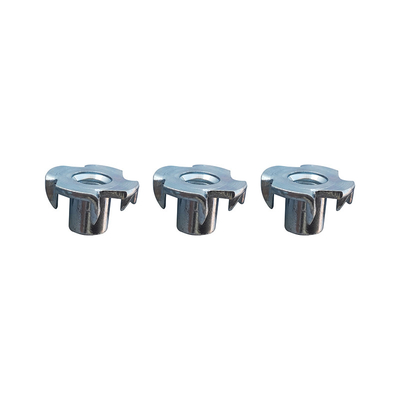

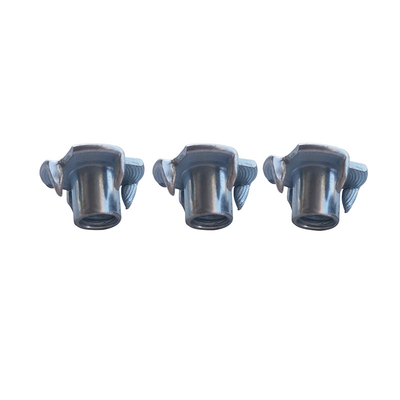

Steel T Nuts With 4 Prongs ZP YZ Black/Gray Phosphated Plated
T-Nuts or Tee-Nuts, so called because of their profile, are designed to be inserted into wood, particle board or composite materials and locked into place with prongs. The internally threaded barrel allows a bolt or screw to be fastened into the nut. Also known as a Blind Nut, Rivet Nut or an Insert Nut.
| Diameter (Nominal): | M6 |
| Thread Pitch: | 1.0 |
| Diameter (Dimension): | 5.25mm |
| Length (Nominal): | 10.0mm |
| Product Class: | Internally Threaded Fasteners |
| Order: | Specialty Nuts |
| Category: | T-Nuts |
| System of Measurement: | centimeter |
| Brand: | Guanbiao |
| Form and Design: | 4 Prongs |
| Thread Length: | Full Thread |
| Thread Direction: | Right-Hand Thread |
| Material: | Steel |
| Coating: | Zinc Plated |
| Coating Color: | Clear |
product detail presentation
Factory environmental display
Mold warehouse display
Four advantages of choosing Guanbiao Hardware
1. More than 20 years of screw production experience and non-standard screw custom development experience, provide
you with cost-effective screws, and help you solve the fastener supply chain
2. Precise production equipment. The company introduces all imported equipment from Taiwan to produce precision
screws and hardware accessories for you
3. A complete management system, each batch of products that leave the factory undergoes multiple strict monitoring
4. System supporting services, so you have no worries
All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +86 13423026460
