Does Not Come Out Custom Captive Screws M4x16 Eleven Shaped Groove Knurled

Does Not Come Out Custom Captive Screws M4x16 Eleven Shaped Groove Knurled
Does Not Come Out Custom Captive Screws M4x16 Eleven Shaped Groove Knurled Does Not Come Out Custom Captive Screws M4x16 Eleven Shaped Groove Knurled Does Not Come Out Custom Captive Screws M4x16 Eleven Shaped Groove Knurled

Large Image :  Does Not Come Out Custom Captive Screws M4x16 Eleven Shaped Groove Knurled

Product Details:
Place of Origin: China
Brand Name: guanbiao
Certification: ISO, GB, BS, DIN, ANSI,JIS
Model Number: M4*16
Payment & Shipping Terms:
Minimum Order Quantity: 50000PCS
Price: USD0.13
Packaging Details: Plastic bag 1 small box +outer carton +pallets
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS/day

Does Not Come Out Custom Captive Screws M4x16 Eleven Shaped Groove Knurled

Description
Material: Carbon Steel Production Process: Cold Heading, Cold Forging
Surface Finish/treatment: Environmental Protection White Nickel Tolerant: +/- 0.05mm
Lead Time: 10~15 Working Days Size: M4*16
Single: 2.892g/pcs Internal Teeth: M4
Drive: Eleven Characters
High Light:

Captive M4x16 Screws

,

Eleven Shaped Captive Screw

,

Groove Knurled M4x16 Screws

Captive Screw Custom Captive Screws M4*16 Eleven-Shaped Groove Knurled Screw Does Not Come Out Of The Screw



Captive screws are a special type of fastener that are essential in a variety of industries. They are used in the automotive industry, consumer goods industry, optical instrument industry, robotics industry, electronics industry and medical device industry. At US Micro Screw, we can provide custom captive screws to meet your strictest specifications.



Diameter (Nominal): M4
Thread Pitch: 0.7
Length (Nominal): 16.0mm
Head Diameter: 7.8mm
Product Class: Externally Threaded Fasteners
Order: Machine Thread Fasteners
Category: Captive Panel Screws
System of Measurement: Metric system
Form and Design: Style 2
Head Style: Knurled High Head
Head Style Detail: Chamfered Shoulder
Drive Style: Slotted Drive
Thread Direction: Right-Hand Thread
Point: Long Dog Cone Point
Material: Carbon Steel
Coating: Environmental protection white nickel



product detail presentation

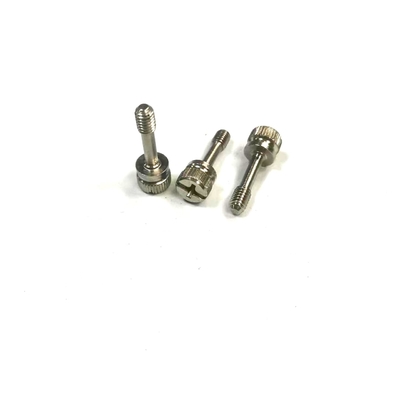

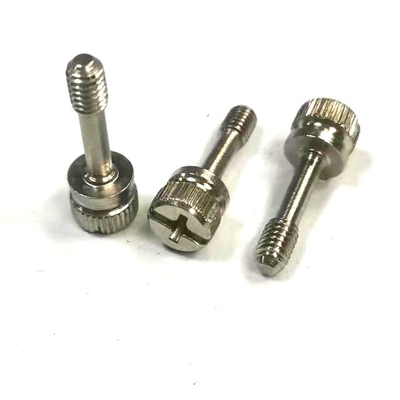

Captive screws



Captive screws



Custom Captive Screws



Captive screws









Factory environmental display



Nuts for household fingerprint locks ; Nuts for household smart locks Manufacturer



Nuts for household fingerprint locks ; Nuts for household smart locks Manufacturer



Nuts for household fingerprint locks ; Nuts for household smart locks Manufacturer



CNC machining center



Does Not Come Out Custom Captive Screws M4x16 Eleven Shaped Groove Knurled 5



Mold warehouse display



Does Not Come Out Custom Captive Screws M4x16 Eleven Shaped Groove Knurled 6



Four advantages of choosing Guanbiao Hardware


1. More than 20 years of screw production experience and non-standard screw custom development experience, provide

you with cost-effective screws, and help you solve the fastener supply chain
2. Precise production equipment. The company introduces all imported equipment from Taiwan to produce precision

screws and hardware accessories for you
3. A complete management system, each batch of products that leave the factory undergoes multiple strict monitoring
4. System supporting services, so you have no worries




All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +86 13423026460
