Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304

Certification
China Dongguan Guanbiao Hardware Products Co., LTD certification
I'm Online Chat Now

Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304

Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304
Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304

Large Image :  Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304

Product Details:
Place of Origin: China
Brand Name: guanbiao
Certification: ISO, GB, BS, DIN, ANSI,JIS
Model Number: 4.9*13.0
Payment & Shipping Terms:
Minimum Order Quantity: 50000PCS
Price: Negotiable
Packaging Details: Plastic bag 1 small box +outer carton +pallets
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 100000PCS/day

Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304

Description
Material: Stainless Steel: 304 Production Process: Cold Heading, Cold Forging
Surface Finish/treatment: Polishing, Passivation Size: 4.9*13
Package: Small Box, Small Color Box, Export Carton, And Put On Strong Wood Pallet Single: 7.5g
Delivery Time: 15-20 Day Use: For Door And Window Fixing Adjustment
Tooth: No
High Light:

Eccentric Adjusting Stainless Steel Screw

,

4.9X13 Stainless Steel Screw

,

Broken Bridge Eccentric Adjustment Screw

Stainless Steel Eccentric Adjusting Screw Rear Axle 4.9X13.0 Polished SUS304 Material



Material SS304
Head diameter 9.5mm
Head height 8.5mm
Groove hexagon
Hexagonal 4.0mm
Hex Effective Depth 3.7mm
Rod diameter 4.9mm
Total length 13.0mm
Eccentricity 1.3mm
Application broken bridge window

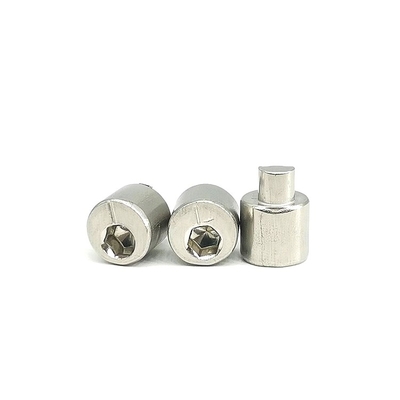

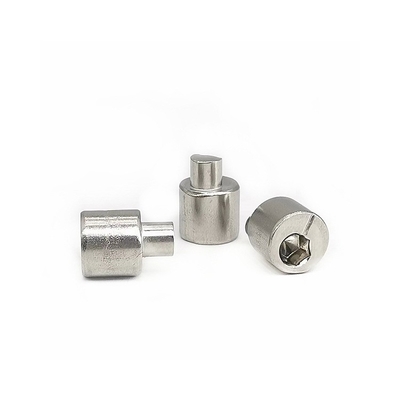

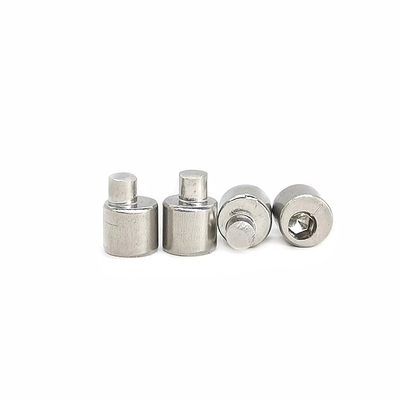

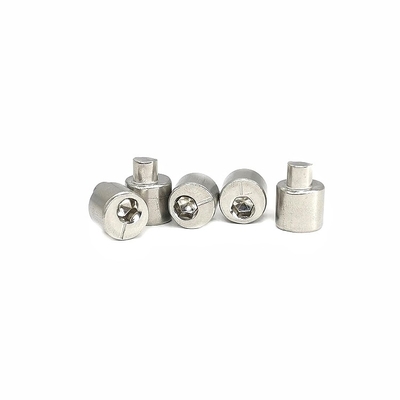

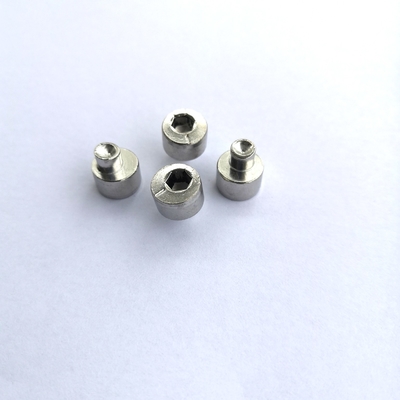

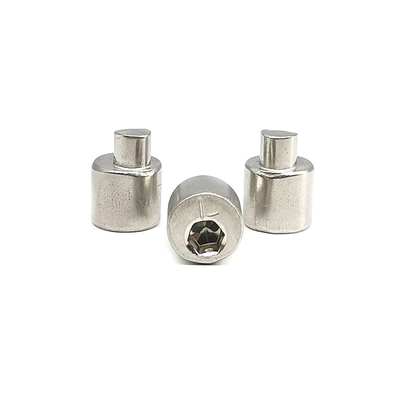

Stainless Steel Eccentric Adjustment Screw picture details display



Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 0Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 1

Stainless Steel Eccentric Adjusting Screw Rear Axle 4.9X13.0 Polished SUS304 Material For Broken Bridge

Dongguan factory can customize various specifications of hexagonal eccentric rivets and lock rubber chain rivets



Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 2

Rear axle eccentric adjustment screw engineering drawing

Unit: mm

Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 3



Factory environmental display



Rear axle eccentric adjustment screw production workshop



Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 4



Non-standard custom Stainless Steel Eccentric Adjusting Screw, hardware product production workshop

All the machines are multi-position cold heading equipment imported from Taiwan, with two dies and four punches,

three dies and six punches, four dies and four punches, four dies and eight punches, six dies and six punches



Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 5

Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 6



Precision thread rolling equipment



Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 7



Eccentric Adjusting Screw CNC machining center



Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 8



Precision Secondary Machining Lathes



Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 9



Eccentric Adjusting Screw Factory testing equipment/Fully automatic CCD detection equipment



Eccentric Adjusting Stainless Steel Screw Rear Axle 4.9X13 Polished SUS304 10



Connection principle of eccentric screw and eccentric bolt



Principle: Using the physical and mathematical principles of the oblique circular rotation and friction of the object, it is a tool for tightening the mechanism of the object step by step.
1. The replacement of the eccentric screw is for adjustment during positioning and does not affect safety.
2. Eccentric screws are widely used in automobiles. After installing eccentric screws, the force on the screws below will not increase. However, after replacing eccentric screws, the eccentric screws will definitely be thinner than the original screws.
3. The eccentric screw is generally used to adjust the angle of the car tire, including inclination and camber.
4. To sum up, it is the principle and function of the eccentric screw.





All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +86 13423026460
