Eccentric Adjustment Stainless Steel Screws 4.9X10.5 SUS304 Window Eccentric Clamp Bolt
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO, GB, BS, DIN, ANSI,JIS |
| Model Number: | 4.9*10.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000PCS |
|---|---|
| Price: | USD0.054/piece |
| Packaging Details: | Plastic bag 1 small box +outer carton +pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Material: | Stainless Steel: 302,304,316 | Production Process: | Cold Heading, Cold Forging |
|---|---|---|---|
| Surface Finish/treatment: | Polishing, Passivation | Size: | 4.9*10.5 |
| Thread Type: | Machine Thread | Package: | Small Box, Small Color Box, Export Carton, And Put On Strong Wood Pallet |
| Single: | 3.7g | ||
| Highlight: | Passivation Eccentric Adjustment Screw,Eccentric Adjustment Stainless Steel Screws,4.9X10.5 Stainless Steel Screws |
||
Product Description
Custom Stainless Steel Eccentric Adjustment Screws 4.9X10.5 SUS304 Material
lock rubber chain rivets
Door and window fitting screws
| material | SS304 |
| head diameter | 9.5mm |
| head height | 8.5mm |
| Groove | hexagon |
| Hexagonal | 4.0mm |
| Hex Effective Depth | 3.7mm |
| rod diameter | 4.9mm |
| total length | 10.5mm |
| Eccentricity | 1.3mm |
| application | broken bridge window,Door and window fitting screws |

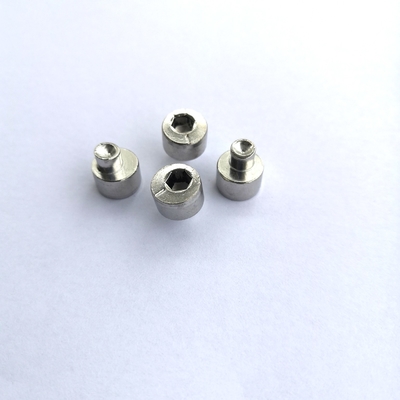

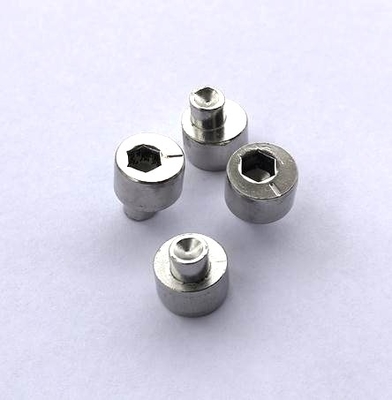

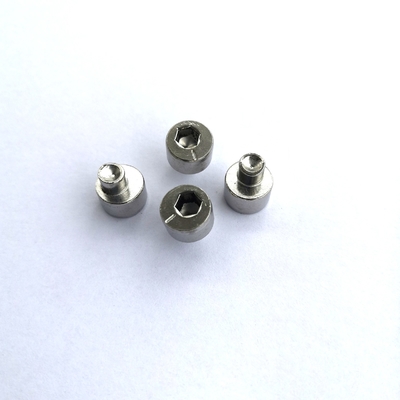

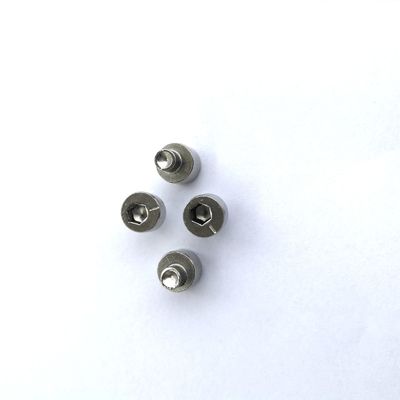

Stainless Steel Eccentric Screw picture details display
Door and window fitting screws
Unit: mm
Factory environmental display
Precision screw production workshop
Non-standard custom screws, hardware product production workshop
All machines are multi-position cold heading equipment imported from Taiwan,
From one and a half machines to four machines, all complete
Precision thread rolling equipment
CNC machining center
Fully automatic hardware secondary processing machine
Fully automatic CCD detection equipment
Connection principle of eccentric screw and eccentric bolt
Principle: Using the physical and mathematical principles of the oblique circular rotation and friction of the object, it is a tool for tightening the mechanism of the object step by step.
1. The replacement of the eccentric screw is for adjustment during positioning and does not affect safety.
2. Eccentric screws are widely used in automobiles. After installing eccentric screws, the force on the screws below will not increase. However, after replacing eccentric screws, the eccentric screws will definitely be thinner than the original screws.
3. The eccentric screw is generally used to adjust the angle of the car tire, including inclination and camber.
4. To sum up, it is the principle and function of the eccentric screw.
All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +86 13423026460
