Cold heading Eccentric Adjustment Screw Stainless Steel SUS304
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO, GB, BS, DIN, ANSI,JIS |
| Model Number: | 4.9*10.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag 1 small box +outer carton +pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Material: | Stainless Steel: 302,304,316 | Production Process: | Cold Heading, Cold Forging |
|---|---|---|---|
| Surface Finish/treatment: | Polishing, Passivation | Size: | 4.9*10.5 |
| Thread Type: | Machine Thread | Package: | Small Box, Small Color Box, Export Carton, And Put On Strong Wood Pallet |
| Single: | 3.7g | ||
| Highlight: | SUS304 Eccentric Adjustment Screw,Cold Heading Eccentric Adjustment Screw,Eccentric Adjustment Stainless Steel Screw |
||
Product Description
Eccentric Adjustment Screw Stainless Steel SUS304
| material | SS304 |
| head diameter | 9.5mm |
| head height | 8.5mm |
| Groove | hexagon |
| Hexagonal | 4.0mm |
| Hex Effective Depth | 3.7mm |
| rod diameter | 4.9mm |
| total length | 10.5mm |
| Eccentricity | 1.3mm |
| application | broken bridge window |

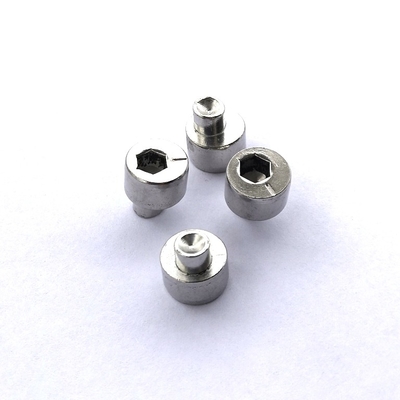

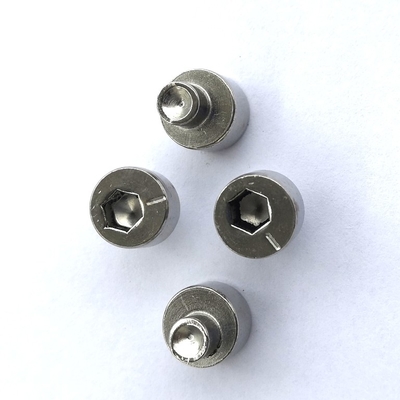

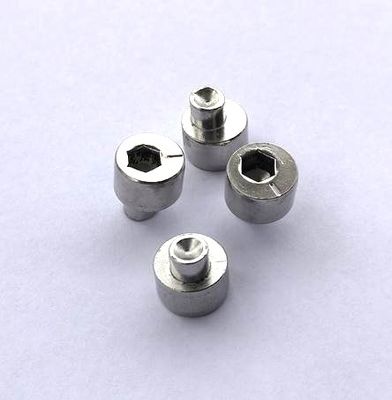

Stainless Steel Eccentric Screw picture details display
Unit: mm
Factory environmental display
Precision screw production workshop
Non-standard custom screws, hardware product production workshop
CNC machining center
Factory testing equipment
Cold Heading Advantage
1, production process without waste, save material cost, especially precious metals and small head rod products.
2, through extrusion molding, maximum retention of material metal streamline, not easy to break.
3, through cold work hardening, the material metal composition arrangement dense, to achieve the advantages of good tensile strength, high hardness, high torsion.
Fully automated production saves a lot of labor costs.
5, can produce M1.0-M20 products, the head can achieve 40.0mm, the longest can achieve 300mm.
6, Taiwan imported equipment, high precision, multi-power equipment can produce complex shape of hardware.
7, the material is more environmentally friendly, such as 304 stainless steel is food grade material, has good environmental protection and corrosion resistance.
8, surface treatment, high finish, good adhesion, more easy to coating.
All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +86 13423026460
