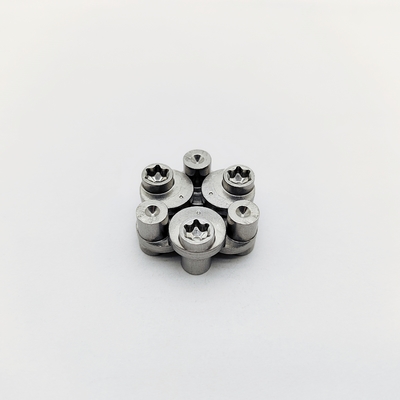

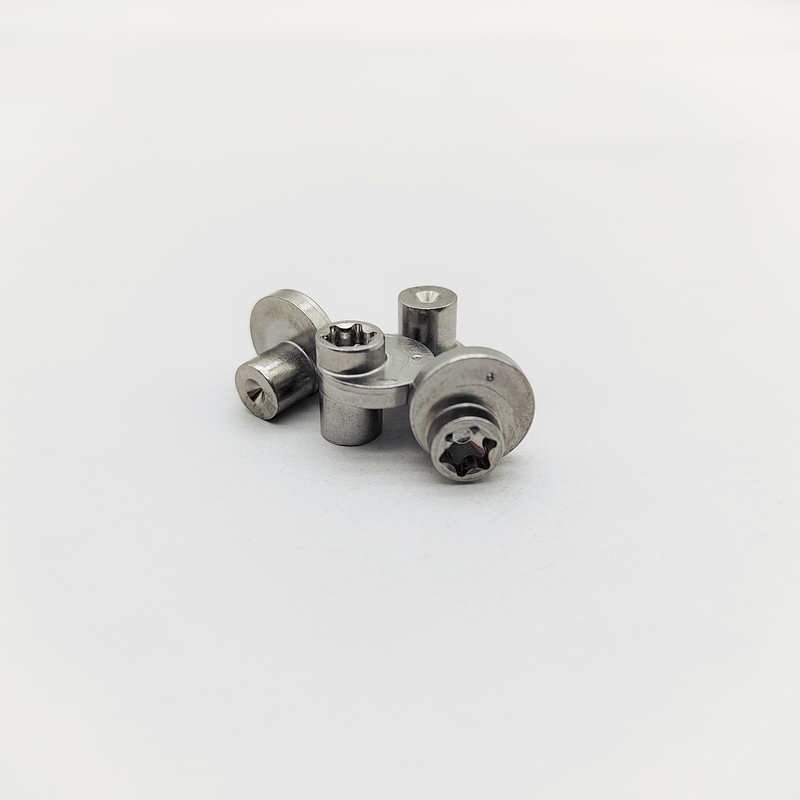

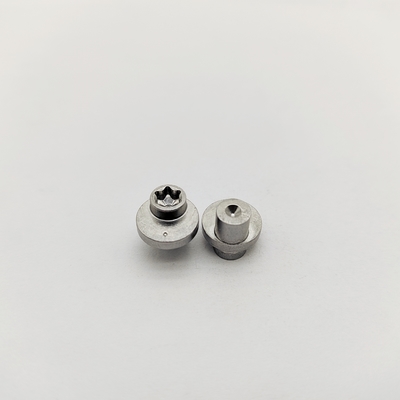

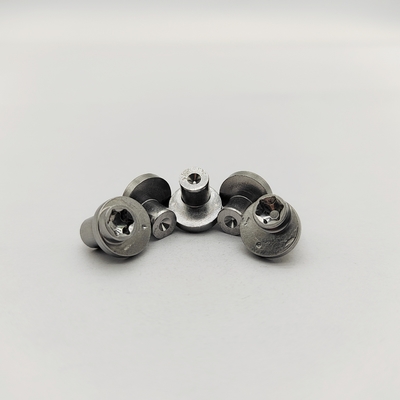

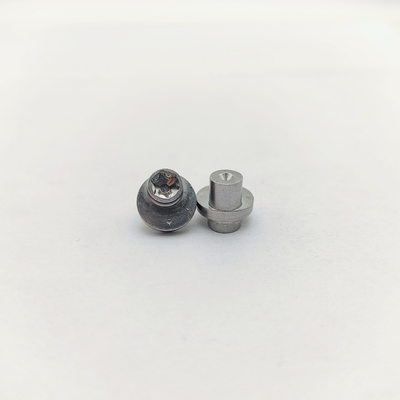

Torx Eccentric Screws - Heavy Duty Misalignment Correction - Grade 12.9 Steel - Dacromet Coated - Custom Offsets
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | M8x20mm to M16x100mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Screw Shank Length: | Customizable | Package Quantity: | 50000 |
|---|---|---|---|
| Finish: | Dacromet® Coating (1,000hrs Salt Spray) | Screw Shank Diameter: | Customizable |
| Accuracy: | 0.01mm | Drive Type: | Torx |
| Size: | M8x20mm To M16x100mm | Country Of Origin: | China |
| Tooth: | No | ||
Product Description
Torx Eccentric Screws - Heavy Duty Misalignment Correction - Grade 12.9 Steel - Dacromet Coated - Custom Offsets
Solve frame misalignment with Grade 12.9 Torx eccentric screws. ±0.5-2.5mm offset adjustment. Dacromet coated alloy steel. For machinery, conveyors & structural repair. High torque T30-T50 drive. Custom specs.
Engineered for **industrial frame misalignment**, these **Torx Eccentric Screws** feature an **off-axis shank (±0.5-2.5mm offset)** to compensate for drilled hole deviations up to 5mm. Manufactured from **quenched-tempered alloy steel (Grade 12.9)**, they deliver 1,200MPa tensile strength with **Dacromet coating** for corrosion resistance in harsh environments. The **Torx drive (T30-T50)** ensures maximum torque transfer without cam-out.
TECHNICAL SPECIFICATIONS |
|
| Drive Type | Torx TR (Tamper-Resistant with Pin |
| Eccentric Offset (e) | ±0.5mm, ±1.0mm, ±1.5mm, ±2.0mm, ±2.5mm |
| Torx Size | T30 (M8), T40 (M10), T45 (M12), T50 (M16) |
| Sizes | M8x20mm to M16x100mm |
| Tensile Strength | 1,200 MPa |
| Material | Alloy Steel 42CrMo (Grade 12.9) |
| Surface Treatment | Dacromet® Coating (1,000hrs Salt Spray) |
| Max Plate Thickness | 15mm (per side) |
| Customization | Non-standard offsets, lengths, coatings |
Primary Uses & Applications:
- Conveyor frame alignment
- Heavy machinery weldment repair
- Structural steel hole compensation
- Mining equipment assembly
- Railway rolling stock maintenance
How to Use:
1. **Rotate** screw shank to align offset direction with hole deviation.
2. **Insert** through misaligned holes.
3. **Torque** with **TR Torx bit** (e.g., TR40 for M10) at **90-120 Nm** (M10).
4. **Clamp** plates securely without re-drilling.
