304 Stainless Steel Hex Standoff Screw M2.5 to M6 PCB Mounting
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | Customizable |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Features: | Male-Female Threaded Ends | Product Application: | Equipment Mounting |
|---|---|---|---|
| Thread: | Male-Female | Lead Time: | 15~20 Working Days |
| Finsh: | Passivation** (Standard, Enhances Corrosion Resistance) | Material: | Stainless Steel |
| Tolerant: | +/- 0.05mm | Strength: | High |
| Corrosion Resistance: | High | Specification: | ISO |
| Quantity: | Pack Of 1000 | Type: | Standoff Screws |
| Samples: | Free Samples | Easy To Install: | Yes |
| Total Length: | 5mm To 60mm (e.g., 25mm) | ||
| Highlight: | 304 stainless steel hex standoff screw,M2.5 to M6 PCB mounting standoff,stainless steel PCB standoff screws |
||
Product Description
Stainless steel hex standoff screws with male/female threads. A2-70 SS, passivated finish. Sizes M2.5-M6. Custom lengths & thread configurations. For PCB stacking, spacing, & grounding in electronics.
| Attribute | Value |
|---|---|
| Product Application | Metal Furniture |
| Head Style | Truss |
| Thread | No |
| Lead Time | 15~20 working days |
| Finish | Clear or Black Anodized (Smooth, Durable) |
| Installation Method | Riveting |
| Material | Aluminum Alloy |
| Tolerant | +/- 0.05mm |
| Shear Strength | 1/4" dia: ~1,200 lbs (~5.3 kN) (6061-T6) |
Our Hex Standoff Screws (also known as Male-Female Threaded Standoffs) are essential components for creating precise spacing, providing strong mounting points, and managing board-to-board stacking in electronic assemblies.

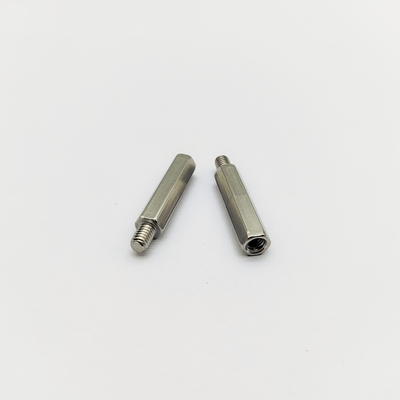

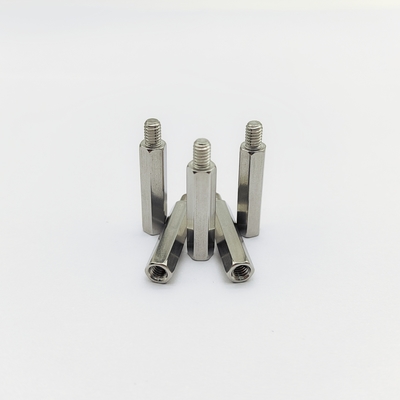

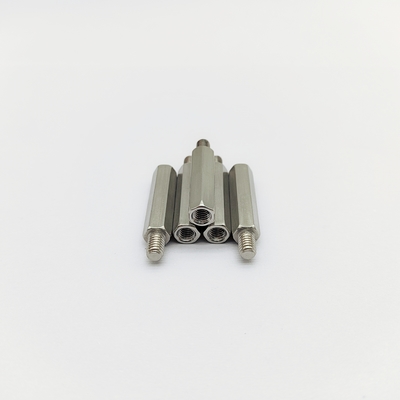

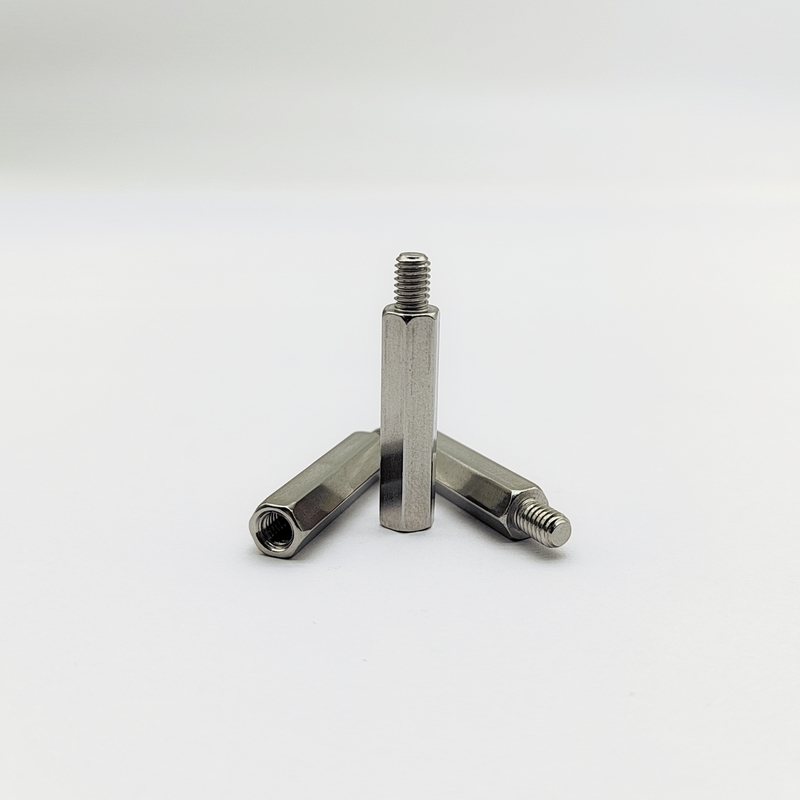

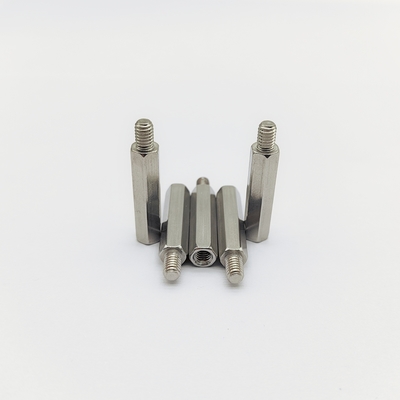

Featuring a hexagonal body for easy installation with a wrench, these standoffs have male threads on one end and female threads on the other, allowing for flexible and secure connections. Machined from A2-70 (304) stainless steel and finished with a passivation treatment, they offer excellent corrosion resistance, durability, and a consistent, smooth surface for reliable performance in electronic devices.
- PCB Stacking: Creating multiple layers of printed circuit boards (PCBs) in servers, routers, and communication equipment.
- Component Spacing: Providing precise space between boards and chassis for airflow, component clearance, and heat dissipation.
- Grounding: Establishing reliable electrical grounding paths between PCBs and metal enclosures (using conductive stainless steel).
- Equipment Mounting: Securing modules, cards, and hard drives within computers, industrial controls, and test instruments.
- Consumer Electronics: Used inside appliances, gaming consoles, and audio/video equipment for internal mounting and spacing.
- Identify Ends: Determine the male-threaded end and the female-threaded end.
- Install Male Thread: Screw the male thread into a pre-tapped hole in the chassis, base PCB, or threaded insert. Use a hex wrench to tighten securely.
- Stack Components: Place the board or component that needs to be spaced over the installed standoff.
- Secure Assembly: Insert a machine screw through the component and into the female thread of the standoff.
- Optional Stacking: Another standoff can be screwed into the female thread of the first one to create greater height.
- 20+ years of screw production and custom development experience
- Precise production equipment with imported machinery from Taiwan
- Complete quality management system with multiple inspection stages
- Dedicated account management for seamless collaboration
Our team provides comprehensive support including product selection advice, installation guidance, and troubleshooting assistance. We offer detailed specifications, material safety data sheets, and maintenance recommendations.
Products are securely packaged in moisture-resistant bags within sturdy boxes. Larger orders are palletized and shrink-wrapped. We use reliable courier services with tracking information provided.
