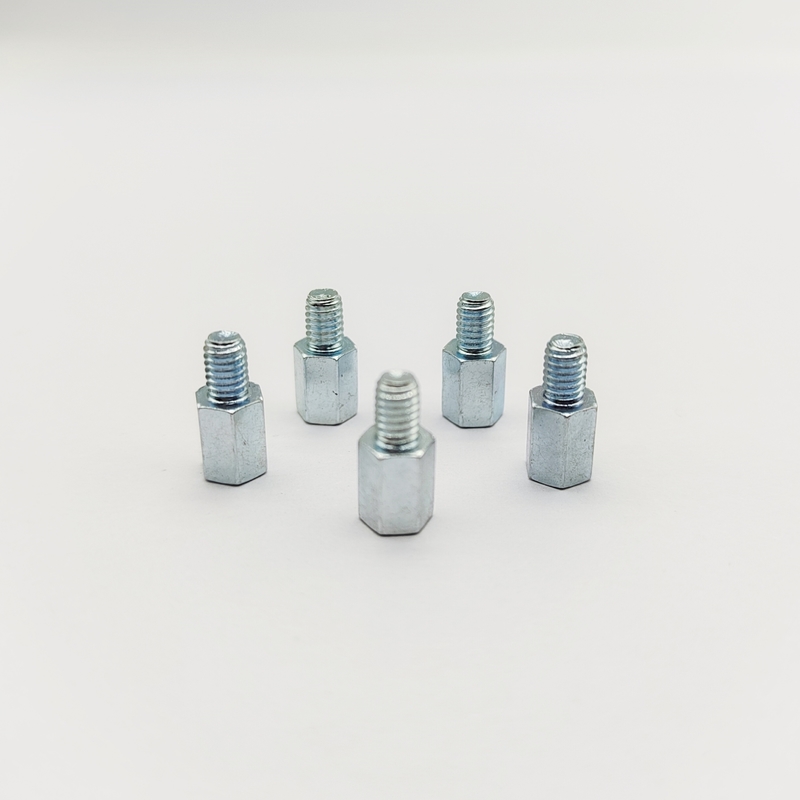

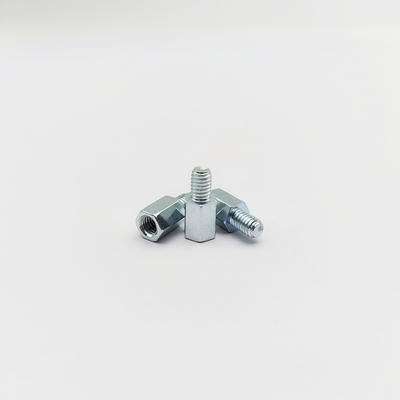

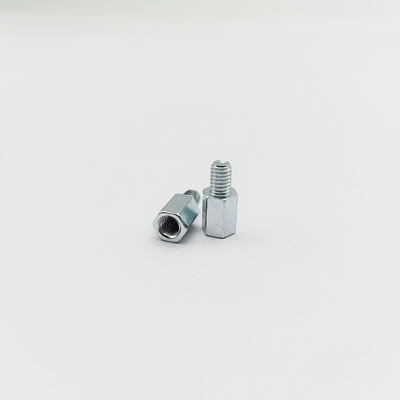

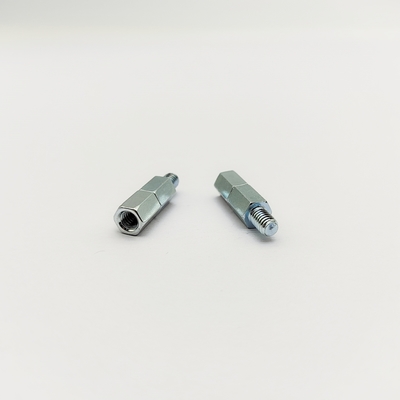

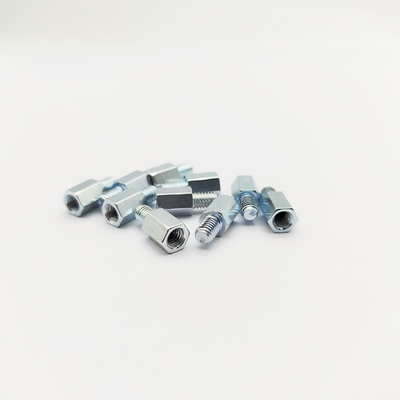

M4 Hex Standoff Screw 8mm Stainless Steel Blue-Zinc Plated
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | Customizable |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Product Application: | Compact Electronics | Thread: | Male-female |
|---|---|---|---|
| Lead Time: | 15~20 Working Days | Finsh: | Blue-White Zinc Plating** (Smooth Finish) |
| Material: | Stainless Steel (Standard Or High-Strength Grade) | Tolerant: | +/- 0.05mm |
| Strength: | High | Specification: | ISO |
| Quantity: | Pack Of 1000 | Type: | Standoff Screws |
| Samples: | Free Samples | Easy To Install: | Yes |
| Total Length: | 8 Mm | ||
| Highlight: | M4 hex standoff screw 8mm,stainless steel standoff screw blue-zinc,blue-zinc plated M4 standoff |
||
Product Description
Short Hex Standoff Screw - M4 Thread - Male-Female - Blue-Zinc Plated - for Compact PCB Spacing - H6-M4x8+6
Our Short Hex Male-Female Standoff Screws are engineered for applications where board real estate is limited and vertical space is at a premium. The H6-M4x8+6 model exemplifies this, providing a minimal yet crucial 8mm overall height for precise spacing in ultra-compact electronic assemblies.
Featuring a hexagonal body for easy installation, these standoffs have male threads on one end (6mm long) and female threads on the other (2mm deep), enabling secure connections in tight layouts. Manufactured from stainless steel and finished with a blue-white zinc plating, they offer reliable corrosion protection and electrical connectivity for standard indoor environments.
TECHNICAL SPECIFICATIONS
| Thread Diameter | M4 x 0.7mm |
|---|---|
| Hex Size (AF) | 6 mm |
| Total Length (L) | 8 mm (Fully Customizable) |
| Male Thread Length (L_m) | 6 mm (Fully Customizable) |
| Female Thread Depth (L_f) | ~2 mm (L - L_m, Fully Customizable) |
| Material | Stainless Steel |
| Surface Treatment | Blue-White Zinc Plating (Smooth Finish) |
| Key Feature | Low-Profile, Male-Female Threaded Ends |
| Customization | Custom L, L_m, L_f, thread types available |
Primary Uses & Applications
- Compact Electronics: Providing minimal spacing in routers, switches, IoT modules, and smart home hubs where internal space is highly constrained.
- Wearable Devices: Creating sturdy mounting points in smartwatches, fitness trackers, and AR/VR headsets.
- Drones & UAVs: Securing flight controllers, GPS modules, and other PCBs within the lightweight and compact frames of drones.
- Consumer PC Peripherals: Used inside compact keyboards, mice, and external storage devices.
- Board-to-Board Connections: Establishing short, rigid connections between two parallel PCBs stacked closely together.
How to Use
- Identify Ends: The end with the 6mm long external thread is the male end. The end with the ~2mm deep internal thread is the female end.
- Install Male Thread: Screw the male thread into a pre-tapped hole in the chassis or base PCB. Use a 6mm hex wrench to tighten securely. Avoid over-torquing.
- Stack Components: Place the second PCB or component over the installed standoff.
- Secure Assembly: CRITICAL: Due to the shallow female thread depth, you MUST use a short M4 machine screw (sold separately) that does not exceed the effective depth (e.g., a 3-4mm long screw). Insert the screw and tighten gently to secure the assembly without bottoming out the screw in the standoff.
- Planning: When designing your product, ensure the screw length is chosen carefully to engage enough threads without causing damage.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience, providing cost-effective solutions for your fastener supply chain.
- Precise production equipment with imported machinery from Taiwan to produce precision screws and hardware accessories, with free sample testing for compatibility verification.
- Complete management system with multiple strict quality monitoring checks for every batch of products.
- Dedicated account management for seamless collaboration and system-supporting services.
Support and Services
Our team of knowledgeable professionals provides comprehensive support for all aspects of our hex standoff screws, including:
- Selection advice to ensure you have the right type and size for your project
- Guidance on proper installation techniques
- Detailed product specifications and material safety data sheets
- Step-by-step installation guides and troubleshooting assistance
- Maintenance tips and best practices to extend product life
Packing and Shipping
Our hex standoff screws are carefully packaged to ensure perfect condition upon arrival:
- Securely held in durable, moisture-resistant plastic bags inside sturdy cardboard boxes
- Cushioned packing materials to prevent movement during transit
- Clear labeling with product information for easy identification
- Palletized and shrink-wrapped for bulk orders
- Reliable courier services with tracking information provided
Our factory accepts customized drawings. Please contact us if you need to highlight specific certifications or other parameters in your order.
