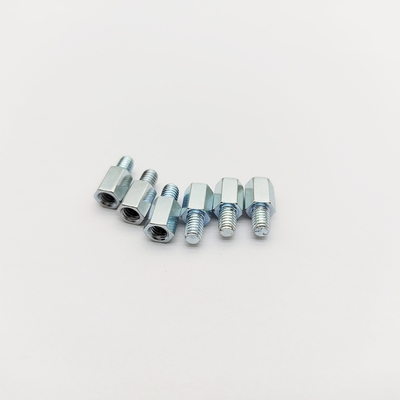

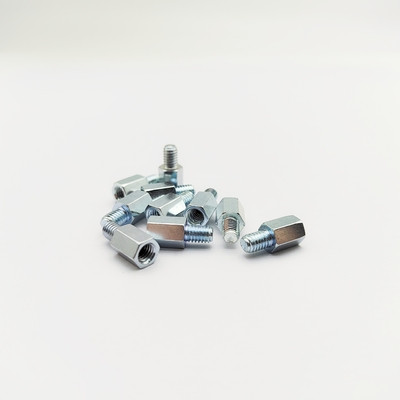

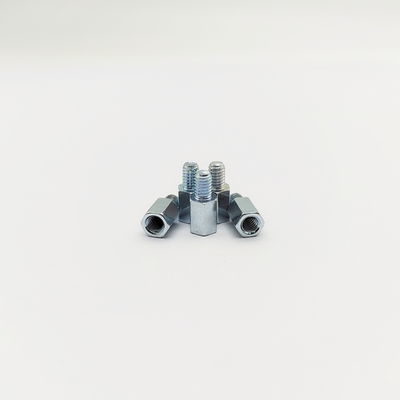

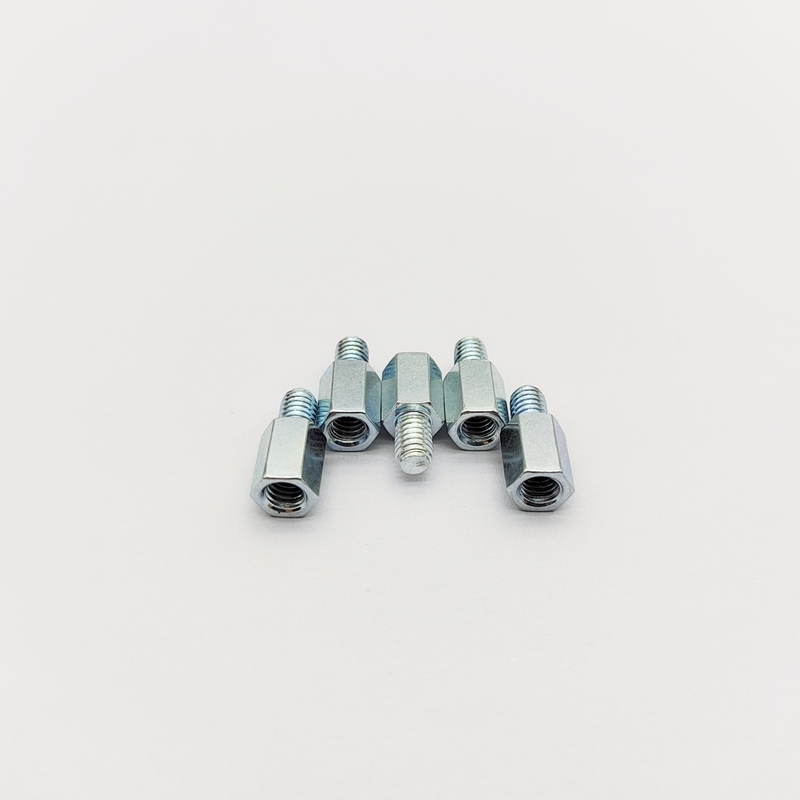

Stainless Steel Hex Standoff Screw M3-M12 5-100mm Blue-Zinc Plated
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | Customizable |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Product Application: | Industrial Control Systems | Thread: | Male-female |
|---|---|---|---|
| Lead Time: | 15~20 Working Days | Finsh: | Blue-White Zinc Plating |
| Material: | Stainless Steel (Standard Or High-Strength Grade) | Tolerant: | +/- 0.05mm |
| Strength: | High | Specification: | ISO |
| Quantity: | Pack Of 1000 | Type: | Standoff Screws |
| Samples: | Free Samples | Easy To Install: | Yes |
| Total Length: | 5mm To 100mm | ||
| Highlight: | stainless steel hex standoff screw,blue-zinc plated standoff screws,M3-M12 standoff screws with warranty |
||
Product Description
Heavy Duty Hex Standoff Screw - Male-Female Threaded - Blue-Zinc Plated - Industrial Grade - M3 to M12
Industrial-Grade Hex Standoff Screws
Our Heavy-Duty Hex Male-Female Standoff Screws provide robust spacing and mounting solutions for demanding industrial applications where strength and reliability are paramount. Manufactured from stainless steel with protective blue-white zinc plating, these standoffs are designed to withstand high vibrational forces and harsh environments.
Technical Specifications
| Thread Diameter | M3, M4, M5, M6, M8, M10, M12 (e.g., M4x0.7) |
|---|---|
| Hex Size (AF) | M3: 5mm; M4: 6mm; M6: 10mm; M8: 13mm; M12: 18mm |
| Total Length (L) | 5mm to 100mm (Fully Customizable, e.g., 8mm) |
| Male Thread Length (L_m) | 3mm to 20mm (Fully Customizable, e.g., 6mm) |
| Female Thread Depth (L_f) | Fully Customizable, e.g., 2mm for L=8 |
| Material | Stainless Steel (Standard or High-Strength Grade) |
| Surface Treatment | Blue-White Zinc Plating |
| Key Feature | Robust Construction for Industrial Use |
| Customization | All dimensions (L, L_m, L_f, Hex Size) are fully customizable |
Primary Applications
- Industrial Control Systems: Mounting PCBs in PLC cabinets, motor drives, and robotic arms where shock and vibration are present.
- Automotive Electronics: Securing control units (ECUs), sensors, and display modules in vehicles (non-safety-critical).
- Telecommunications Infrastructure: Used in 5G base stations, network switches, and outdoor cabinets requiring mechanical durability.
- Power Electronics: Spacing and mounting boards in power supplies, inverters, and battery management systems.
- Test & Measurement Equipment: Providing reliable mounting points in ruggedized field test gear and laboratory instruments.
- General Machinery: Any application requiring a strong, threaded standoff with a hexagonal drive for high-torque installation.
Installation Guide
- Preparation: Ensure tapped holes are clean and free of debris. For zinc-plated standoffs, use zinc-plated screws for corrosion compatibility.
- Tool Selection: Use a correctly sized hex wrench or socket for high-torque installation.
- Install Male Thread: Screw the male thread into the base material and tighten firmly for secure fit and electrical grounding.
- Final Assembly: Place component over standoff and secure with appropriate machine screw, avoiding bottoming out in short female threads.
- Inspection: Verify connection is secure and standoff is perpendicular. Use multiple standoffs for heavy components.
Our Manufacturing Advantages
- 20+ years of screw production experience with non-standard custom development capabilities
- Precision production equipment imported from Taiwan for exacting quality standards
- Comprehensive quality management system with multiple inspection checkpoints
- Dedicated account management and system-supported services for seamless collaboration
Support & Services
Our technical team provides comprehensive support for all aspects of our hex standoff screws, including:
- Product selection advice and sizing recommendations
- Detailed specifications and material safety data
- Installation guides and troubleshooting assistance
- Maintenance tips and best practice recommendations
Packaging & Shipping
- Secure moisture-resistant plastic bags within sturdy cardboard boxes
- Clear labeling with product information for easy identification
- Palletized and shrink-wrapped for bulk orders
- Reliable courier services with tracking information provided
Our factory accepts customized drawings. Contact us to discuss specific certifications or technical parameters for your application.
