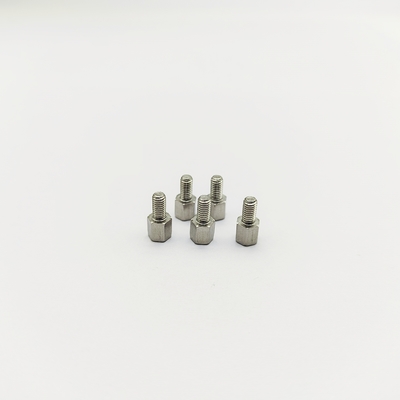

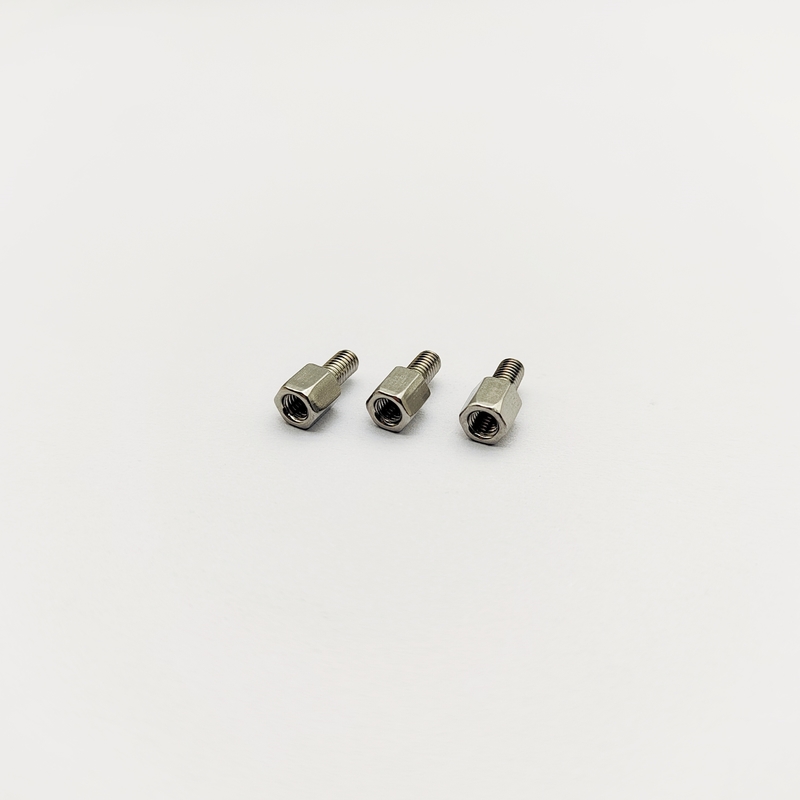

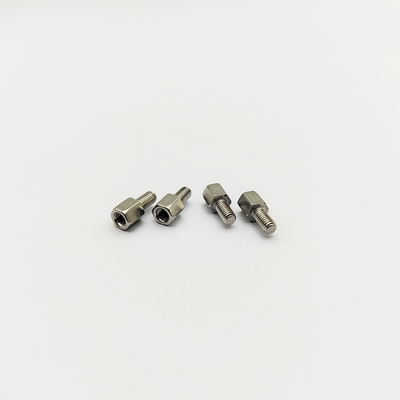

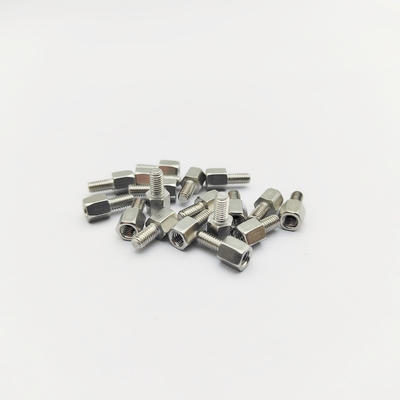

A4-80 Stainless Steel M3 Hex Standoff 11mm Male-Female Electropolished
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | M3 |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Product Application: | Food & Beverage Processing | Thread: | Male-female |
|---|---|---|---|
| Lead Time: | 15~20 Working Days | Finsh: | Electropolishing |
| Material: | A4-80 Stainless Steel (316) | Tolerant: | +/- 0.05mm |
| Strength: | High | Specification: | ISO |
| Quantity: | Pack Of 1000 | Type: | Standoff Screws |
| Samples: | Free Samples | Easy To Install: | Yes |
| Total Length: | 11mm | ||
| Highlight: | M3 hex standoff stainless steel,A4-80 stainless steel standoff,electropolished male-female standoff |
||
Product Description
A4-80 Stainless Steel M3 Hex Standoff - Male-Female - Electropolished - for Harsh Environments - H4.75-M3x11+6
Premium A4-80 (316) stainless steel M3 hex standoffs with electropolished finish. Size H4.75-M3x11+6. Engineered for superior corrosion resistance in medical, marine, and chemical applications. Fully customizable to meet specific requirements.
Our premium M3 Hex Standoffs are manufactured from A4-80 (316) Stainless Steel, offering exceptional resistance to corrosion, pitting, and chemicals. Ideal for harsh industrial, marine, medical, and outdoor applications. The male-female threaded design provides versatile mounting solutions, while the electropolished finish ensures an ultra-smooth, easy-to-clean surface that maximizes corrosion resistance and minimizes bacterial adhesion.
Technical Specifications
| Thread Diameter | M3 x 0.5mm |
|---|---|
| Hex Size (AF) | 4.75 mm (3/16 Inch) |
| Total Length (L) | 11 mm (Fully Customizable) |
| Male Thread Length (L_m) | 6 mm (Fully Customizable) |
| Female Thread Depth (L_f) | 5 mm (L - L_m, Fully Customizable) |
| Material | A4-80 Stainless Steel (316) |
| Surface Treatment | Electropolishing (Superior finish, Ra < 0.4 µm) |
| Tensile Strength | 800 MPa (min) |
| Customization | All dimensions and thread combinations available |
Primary Uses & Applications
- Medical Devices: Assembly of surgical instruments, diagnostic equipment, and implantable device packaging where cleanliness and corrosion resistance are paramount.
- Marine Electronics: Navigation systems, underwater sensors, and communication devices on boats and offshore platforms.
- Laboratory & Analytical Equipment: Spacing components in equipment exposed to chemicals and requiring easy decontamination.
- Food & Beverage Processing: Equipment assembly where cleanability and resistance to corrosive cleaning agents are required.
- Chemical Processing: Mounting components in or near equipment exposed to corrosive vapors or splash.
How to Use
- Clean Environment: For medical and high-purity applications, install in a controlled, clean environment.
- Installation: Use a clean, 3/16 inch hex wrench. Carefully screw the male thread into the receiving tapped hole. The A4-80 stainless steel is stronger but can be prone to galling (cold-welding); using a moderate speed and avoiding over-tightening is advised.
- Final Assembly: Use a matching M3 stainless steel screw (max length ~4mm) to secure the component to the female thread of the standoff. Ensure the screw length is chosen to fully engage the female threads without bottoming out.
- Torque Control: For critical applications, use a torque wrench according to the specifications for A4-80 stainless steel to ensure a secure connection without damaging the threads.
- Custom Solutions: We can manufacture standoffs to your exact specifications to solve unique design challenges involving space constraints or specific environmental exposures.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience, providing cost-effective solutions and helping solve fastener supply chain challenges.
- Precise production equipment with all imported machinery from Taiwan to produce precision screws and hardware accessories. Free sample testing available for compatibility verification.
- Complete management system with multiple strict quality control checks for every batch of products.
- Dedicated account management for seamless collaboration and system-supporting services.
Support and Services
Our team of knowledgeable professionals provides comprehensive support for all aspects of our hex standoff screws. From selection advice to installation guidance, we're committed to ensuring your project's success. Services include detailed product specifications, material safety data sheets, installation guides, and troubleshooting assistance.
Packing and Shipping
Each hex standoff screw is securely packaged in moisture-resistant plastic bags within sturdy cardboard boxes. Larger orders are palletized and shrink-wrapped for safe transport. We use reliable courier services with tracking information provided for all shipments.
Our factory accepts customized drawings. Contact us to discuss specific certifications or other technical parameters for your project requirements.
