Level 10.9 Self Threading Inserts M10x13 For Wheel Electrophoretic Black
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO, GB, BS, DIN, ANSI,JIS |
| Model Number: | M10/M14*13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000PCS |
|---|---|
| Price: | USD0.23/PCS |
| Packaging Details: | Plastic bag 1 small box +outer carton +pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS/day |
|
Detail Information |
|||
| Material: | Alloy Steel 10B21 | Production Process: | Cold Heading, Cold Forging |
|---|---|---|---|
| Surface Finish/treatment: | Electrophoretic Black | Tolerant: | +/- 0.05mm |
| Lead Time: | 10~15 Working Days | Size: | M14/M10*13 |
| Single: | 5.05g/pcs | Hardness Level: | 10.9 Level |
| Groove: | One Word | ||
| Highlight: | Level 10.9 Self Threading Inserts,Electrophoretic Black Self Threading Inserts,10B21 Self Tapping Inserts |
||
Product Description
Self Thread Protector Level 10.9 M10x13 For Wheel Electrophoretic Black Threaded Sleeve
Self Thread Protector Level Description:
Self-Threading inserts are an economical, easy-to-use solution for adding a thread to a variety of steel or alov.
Available in standard or flanged configuration, Self-Threading inserts are steel inserts having both an external and internal thread and two slots which provide rapid cutting action. When driven into a cored or drilled hole, the insert cuts its own thread cleanly and evenly.
Friction between the insert and the steel permanently holds it in place after installation.
Self-threading inserts can be installed into steel or alloy materials with a tap wrench or with a drill press and tapping head. No special tooling is required.
Advantages of self-tapping braces
Insert cuts its own thread cleanly and evenly.
Available in standard or flanged configuration.
Flanged configuration provides larger bearing surface.
Installs easily into steel or alloy materials.
No special tooling is required.
| Product name: | self-tapping thread sleeve, thread protection sleeve |
| Material: | 10B21 |
| Size: | M10/M14*13 |
| Outer teeth: | M14 |
| Internal teeth: | M10 |
| Groove type: | cut a word |
| Groove depth: | 4.0mm |
| Slot width: | 3.0mm |
| Overall length: | 13.0mm |
| Hardness grade: | 10.9 level |
| Surface treatment: | Electrophoretic black |
| Applications: | aircraft, wheels, machinery |
Self Thread Protector Level Features:
The features of a thread protector include durability, ease of installation and removal, corrosion resistance, waterproofing, dustproofing, vibration resistance, and protection of threaded components from damage.
Self Thread Protector Level Applications:
Thread protectors are widely used in industries such as petroleum, natural gas, chemicals, water treatment, aerospace, military, and others to protect the threads of pipes, drill rods, bolts, valves, and other threaded components. They are also used in industrial, construction, mechanical manufacturing, automotive, and other industries that use various threaded connections.
Self Thread Protector Level product detail presentation

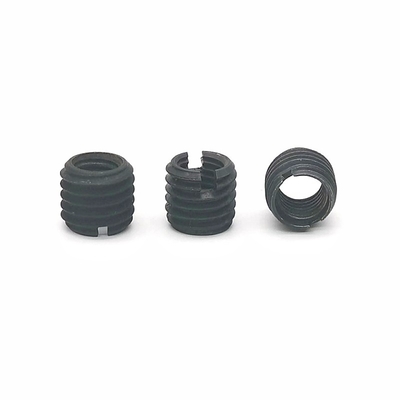

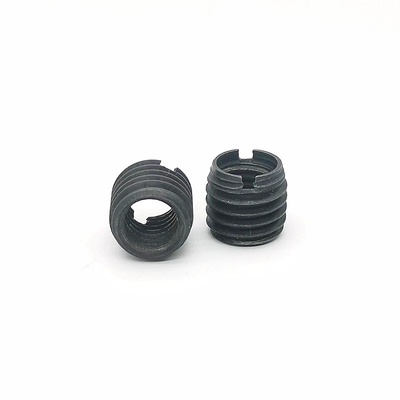

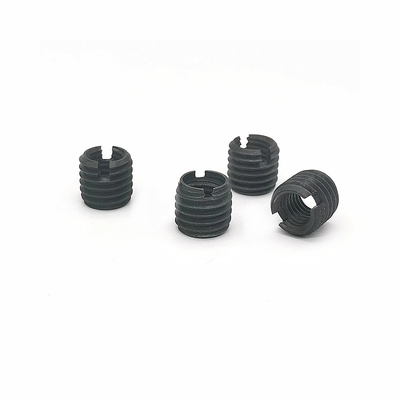

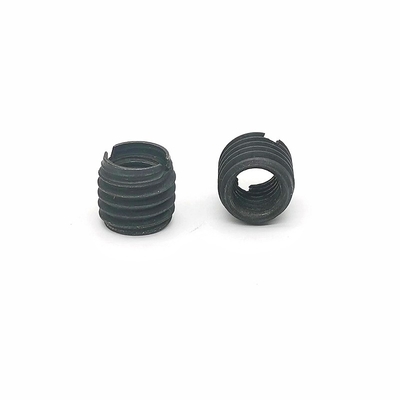

Self threading Inserts
Self threading Inserts Factory environmental display
Self threading Inserts Full inspection equipment
In order to ensure that every screw protector that leaves the factory is a good product, our company is equipped with 10 fully automatic optical screening equipment and more than 10 full inspection personnel.
All of the above products are produced by our company. Most of them have complete sets of molds or some molds. If you find us, you can make money. Welcome to call or add wechat: +8613423026460
