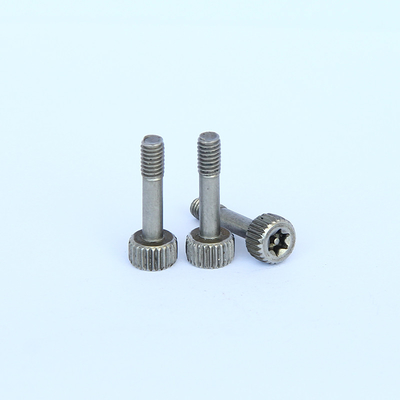

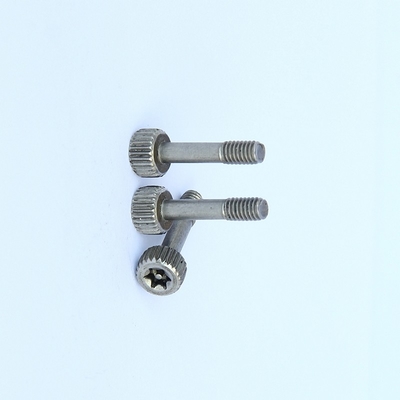

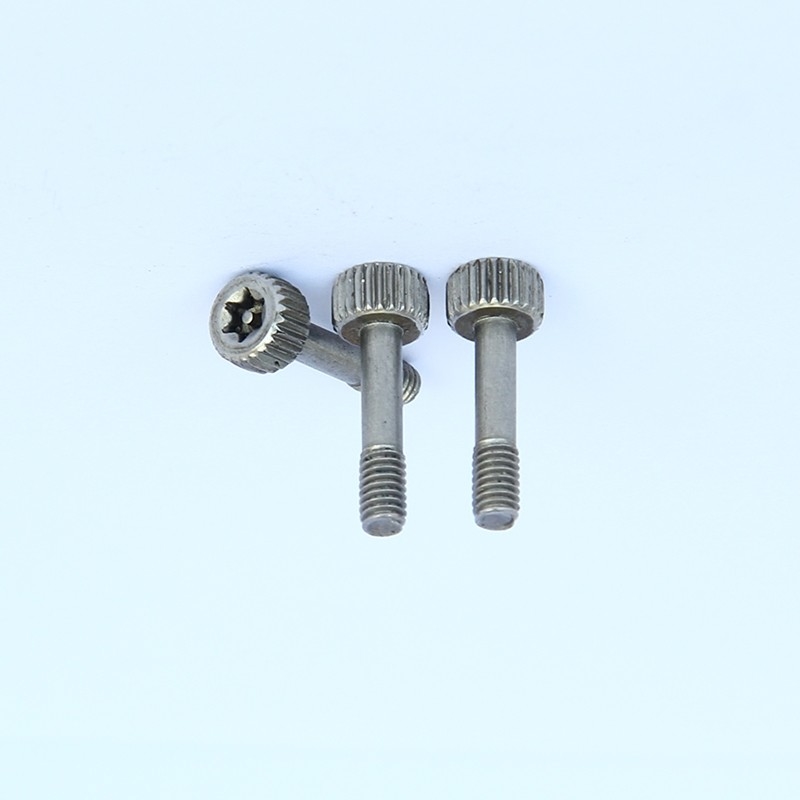

M4*15 Stainless Steel Security Captive Screws 6 Lobe Pin TX Drive Cap

Stainless Steel Security 6 Lobe Pin TX Drive Cap Captive Screws

Pin Head Screws Anti Theft Stainless Steel Tamper Proof Screws SS304 Material M4x15

Stainless steel security 6 lobe pin TX drive cover self-tapping screws are a type of screw that features a unique 6 lobe security drive with a small pin in the center of the recess. The screws are made of high-quality stainless steel, which provides excellent corrosion resistance and durability.

The main advantage of these screws is their high level of security and tamper resistance, which makes them ideal for use in applications where security is a top priority. The unique 6 lobe security drive with a pin in the center of the recess requires a special bit to unscrew it, making it difficult for unauthorized individuals to remove or tamper with the screws.

Additionally, these screws are self-tapping, which means they can create their threads when screwed into a material, making them easy to install and ideal for use in a wide range of applications. They are commonly used in electronic devices, automotive, aerospace, and medical equipment, as well as in public areas where vandalism is a concern.

In summary, stainless steel security 6 lobe pin TX drive cover self-tapping screws are a reliable and effective solution for applications that require a high level of security and tamper resistance. Their self-tapping feature and high-quality stainless steel construction make them easy to install and highly durable, while their unique 6 lobe security drive with a pin provides an additional layer of security.

Technical Data & Availability
Thread Diameter	M2	M2.5	M3	M4	M5	M6	M8	M10
dk (mm)	3.8	4.5	5.5	7	8.5	10	13	16
k (mm)	2	2.5	3	4	5	6	8	10
d1 (mm)	1.4	1.8	2.2	3	3.8	4.5	6.2	8
L1 (mm)	4	5	6	8	10	12	16	20
t (mm)	0.71	0.91	1.01	1.42	1.65	2.02	2.92	3.62
Available Lengths (L)	M2	M2.5	M3	M4	M5	M6	M8	M10
8mm
10mm
12mm
14mm
16mm
18mm
20mm
22mm
25mm
28mm
30mm
35mm
40mm
45mm
50mm
55mm
60mm
65mm
70mm
80mm
90mm
100mm
150mm
200mm
250mm
300mm
Size not listed? Please enquire – we may be able to provide it.

Stainless Steel Security 6 Lobe Pin TX Drive Cap Captive Screws product detail presentation

The following is the Stainless Steel Security 6 Lobe Pin TX Drive Cap Captive Screws  drawing, which can be customized for different sizes, different materials and axial products of different sizes, different materials and different shapes.

Stainless Steel Security 6 Lobe Pin TX Drive Cap Captive Screws  Factory environmental display

Security screws are unique type of screws also called as tamper resistant screw. They are standard screws with unique styles of head which are possible to remove with common tools. A special type of tools is required to remove these types of screws that’s why they are known as anti-thief screw. Any type of screw which are unable to remove with cross head driver or slot style driver could be considered as a security screw. These type of fasteners are used in public areas where assembly is easily accessible to the public
