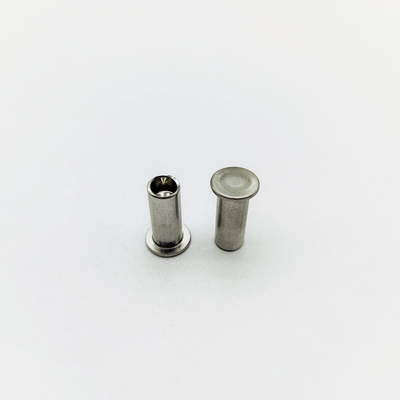

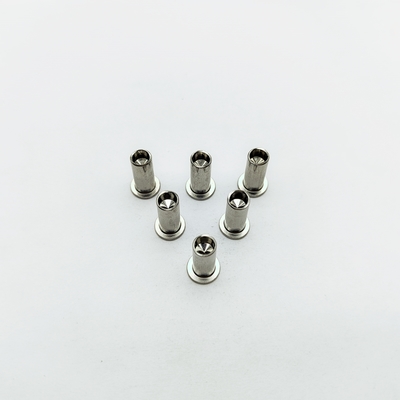

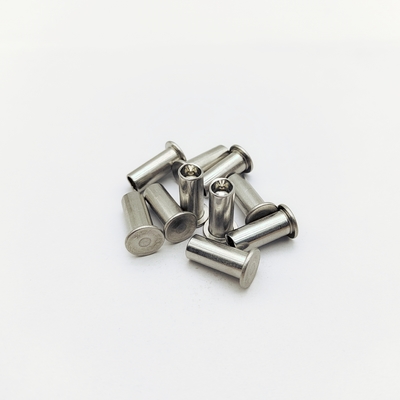

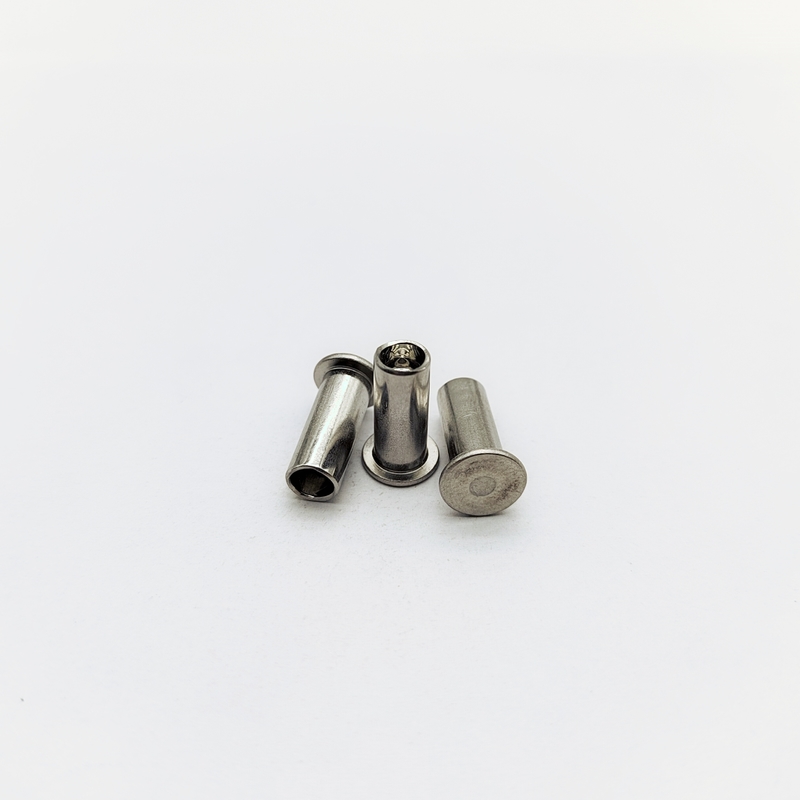

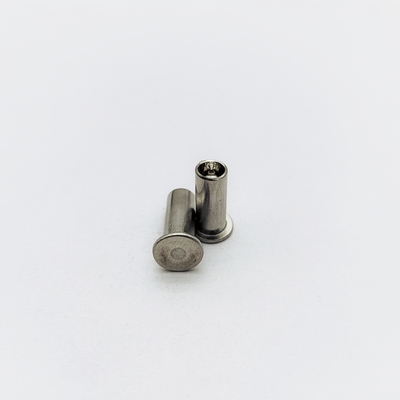

304 Stainless Steel Flat Head Semi-Tubular Rivets M3-M6
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | Customizable |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Product Application: | Electronics Chassis Assembly | Head Style: | Flat |
|---|---|---|---|
| Thread: | No | Lead Time: | 15~20 Working Days |
| Finsh: | Passivation (Matte Grey, Ra 1.2µm) | Installation Method: | Riveting |
| Material: | Stainless Steel | Tolerant: | +/- 0.05mm |
| Dimension: | We Can Customise To Your Dimension | Shear Strength: | M4: 1,850N (ASTM B565) |
| Highlight: | 304 stainless steel flat head rivets,semi-tubular rivets M3-M6,stainless steel rivets with warranty |
||
Product Description
304 Stainless Steel Flat Head Semi-Tubular Rivets M3-M6
Product Overview
Corrosion-resistant semi-tubular rivets with true flat head (180°). 304 stainless steel, 50% hollow body. Sizes M3x6mm to M6x20mm. Passivated finish. For appliances, furniture & electronics. Custom lengths/hollow ratios.
Key Features
- Engineered for invisible fastening with 180° countersunk head (DIN 6797)
- Precision-controlled 50% hollow body reduces installation force
- Made from A2-70 stainless steel (304) with passivated finish
- Resists corrosion in humid environments
- Prevents material cracking during setting
Technical Specifications
| Attribute | Value |
|---|---|
| Head Type | 180° Flat Head (Countersunk) |
| Head Diameter (D) | M3: 6.0±0.1mm; M4: 7.5±0.1mm; M6: 10.5±0.2mm |
| Total Length (L) | 6mm to 20mm (0.5mm increments) |
| Shank Diameter (d1) | M3: 3.0mm; M4: 4.0mm; M6: 6.0mm |
| Hollow Diameter (d2) | 50% of d1 (e.g., M4=2.0±0.05mm) |
| Material | A2-70 Stainless Steel (304) |
| Surface Treatment | Passivation (Matte Grey, Ra 1.2µm) |
| Shear Strength | M4: 1,850N (ASTM B565) |
| Customization | L: 3-30mm, h: 40-80% of L, custom head angles |
Applications
- Electronics: Server chassis grounding, PCB shield mounting
- Appliances: Washing machine drum brackets, oven hinge pins
- Furniture: Sheet metal joints in cabinets, sliding mechanisms
- Automotive: Interior trim panels, sensor bracket fastening
- Lighting: Heat sink attachment in LED fixtures
Installation Guide
- Drill Prep:
- Drill hole = shank dia + 0.1mm (e.g., 4.1mm for M4 rivet)
- Deburr hole edges to prevent scratching
- Insert Rivet:
- Place rivet through materials with head flush against surface
- Ensure materials clamped tightly (max gap 0.05mm)
- Tool Setup:
- Use semi-tubular rivet setter with flat anvil (match head angle)
- Select punch diameter = 90% of hollow dia (e.g., 1.8mm for M4)
- Installation:
- Apply steady pressure (M4: 800-1,000N)
- Bucktail should form 140-160° mushroom shape
- Inspection:
- Verify head is fully seated (no gap)
- Bucktail diameter ≥ 1.5x shank dia (e.g., 6mm for M4)
Quality Assurance
- 20+ years of screw production and custom development experience
- Precision production equipment from Taiwan
- Free sample testing for compatibility verification
- Multiple quality checks before shipment
- Dedicated account management for seamless collaboration
Support & Services
Our technical team provides comprehensive support including product selection advice, installation guidance, and troubleshooting assistance. We offer detailed specifications, material safety data sheets, and maintenance recommendations to ensure optimal performance.
Packaging & Shipping
Rivets are securely packaged in moisture-resistant bags within sturdy boxes. Bulk orders are palletized and shrink-wrapped for protection. We use reliable courier services with tracking information provided for all shipments.
Our factory accepts custom drawings and specifications. Contact us to discuss your specific requirements or to request certifications.
