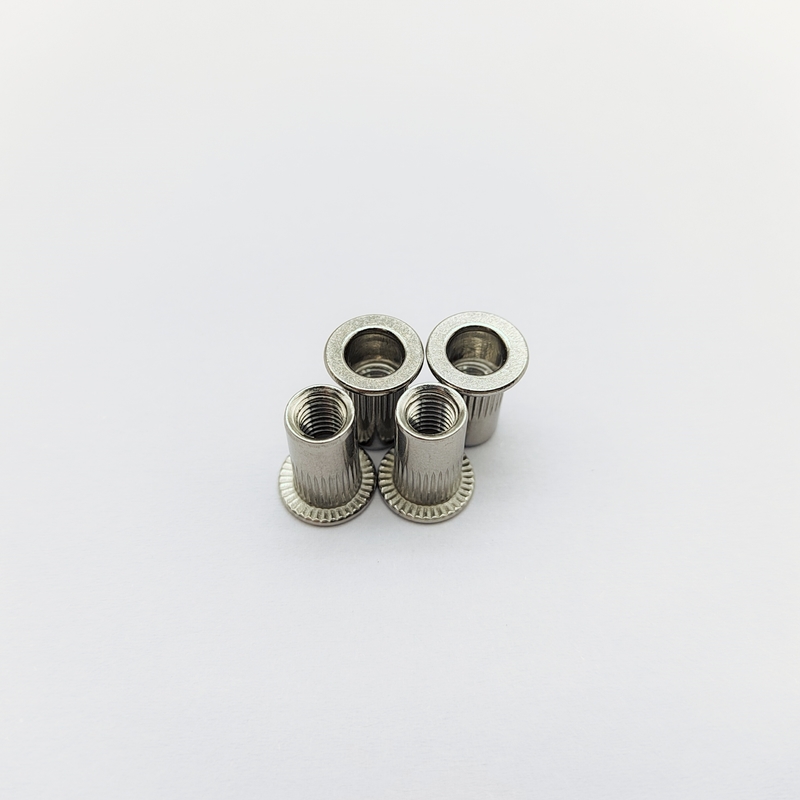

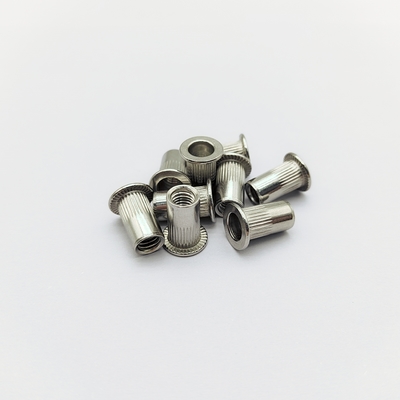

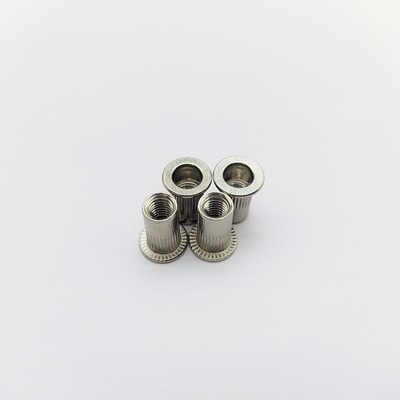

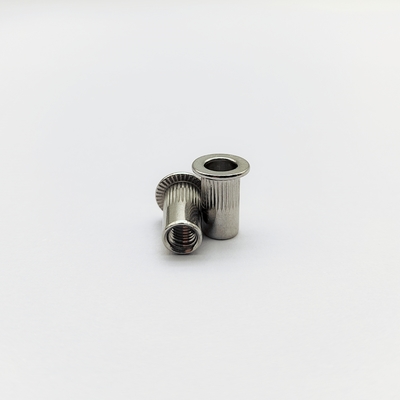

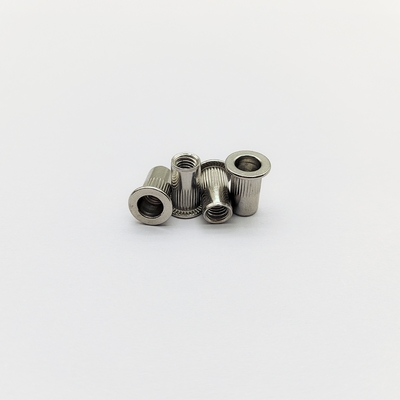

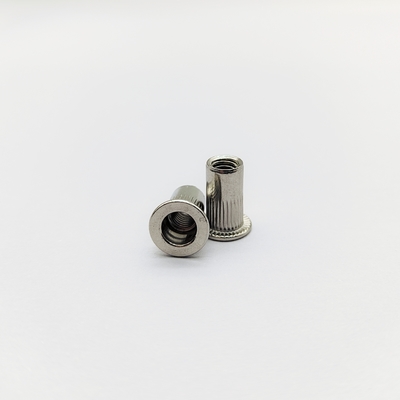

304 Stainless Steel Countersunk Rivet Nuts M4 to M8 for Thin Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | Customizable |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Product Application: | Electronics Chassis Assembly | Head Style: | Flat |
|---|---|---|---|
| Lead Time: | 15~20 Working Days | Finsh: | Passivation (Matte Grey) |
| Installation Method: | Riveting | Material: | Stainless Steel |
| Tolerant: | +/- 0.05mm | Dimension: | We Can Customise To Your Dimension |
| Knurl Depth: | 0.3±0.05mm | ||
| Highlight: | 304 stainless steel rivet nuts,countersunk rivet nuts for thin panels,M4 to M8 stainless rivet nuts |
||
Product Description
| Attribute | Value |
|---|---|
| Product Application | Electronics chassis assembly |
| Head Style | Flat |
| Thread | No |
| Lead Time | 15~20 working days |
| Finish | Passivation + Electropolishing (Ra 0.4µm) |
| Installation Method | Riveting |
| Material | Stainless Steel |
| Tolerance | +/- 0.05mm |
| Dimension | We Can Customise to your dimension |
| Shear Strength | M8: 4,200N (ASTM F1136) |
| Knurl Depth | 0.3±0.05mm |
Anti-rotation rivet nuts with flat head & vertical knurling. 304 stainless steel, semi-smooth body, partial internal threads. Sizes M4-M8. Passivated. Ideal for electronics & enclosures.
Achieve vibration-proof flush mounting in thin materials with these precision knurled rivet nuts. Featuring a countersunk head with vertical diamond knurls under the head (0.3mm depth), they prevent rotation during installation. The semi-smooth body (Ra 0.8µm) protects panel finishes, while partial threads (60% depth) reduce weight without compromising strength. Made from passivated A2-70 stainless steel.
| Head Type | Flat Head (ISO 15977) |
| Head Diameter (D) | M4: 8.0mm; M6: 11.0mm; M8: 14.0mm |
| Total Length (L) | M4: 6-12mm; M6: 8-16mm; M8: 10-20mm |
| Thread Depth (T) | 60% of L (e.g., 10mm nut=6mm thread) |
| Body Finish | Semi-Smooth (Vertical Linear Graining) |
| Material | A2-70 Stainless Steel (304) |
| Surface Treatment | Passivation (Matte Grey) |
| Panel Thickness | 0.8-3.0mm |
| Customization | Knurl depth/angle, thread percentage |
- Electronics: Laptop chassis, SSD mounts, server rack panels
- Automotive: Dashboard sensor mounts, ECU housing fastening
- Medical: Scanner housing assembly, wheelchair frame joints
- Consumer: Camera body shells, drone arm connectors
- Industrial: Control cabinet doors, meter box covers
- Hole Preparation:
- Drill hole = Nut OD -0.1mm (e.g., 5.9mm for M6 nut)
- Deburr & clean with IPA (99% purity)
- Tool Selection:
- Mandrel type: Hex drive (match internal hex size)
- Installation force: M4=1,800N, M6=3,000N
- Installation Steps:
- Insert nut into hole (knurled section first)
- Engage hex tool through threaded hole
- Pull mandrel at 45° angle to compress body
- Maintain force until "click" (body fully deformed)
- Quality Check:
- Head flush within 0.05mm
- No visible knurl above surface
- Thread gauge verification
