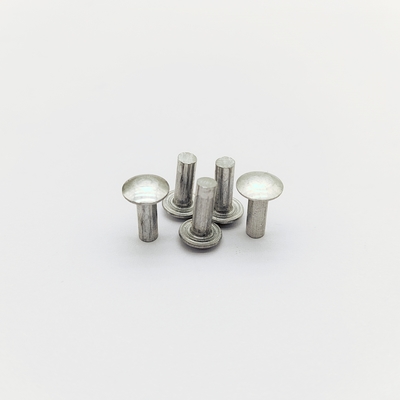

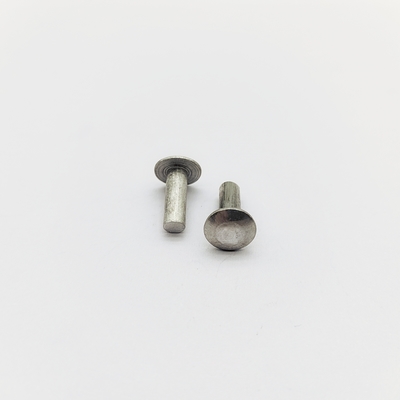

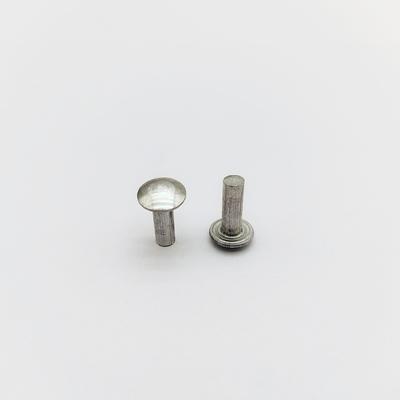

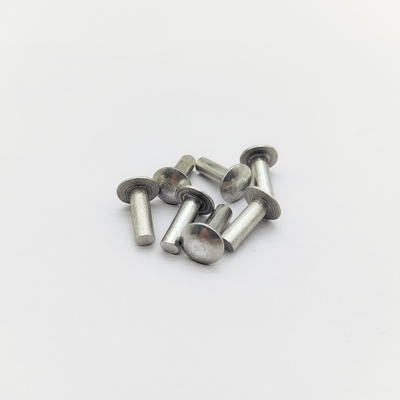

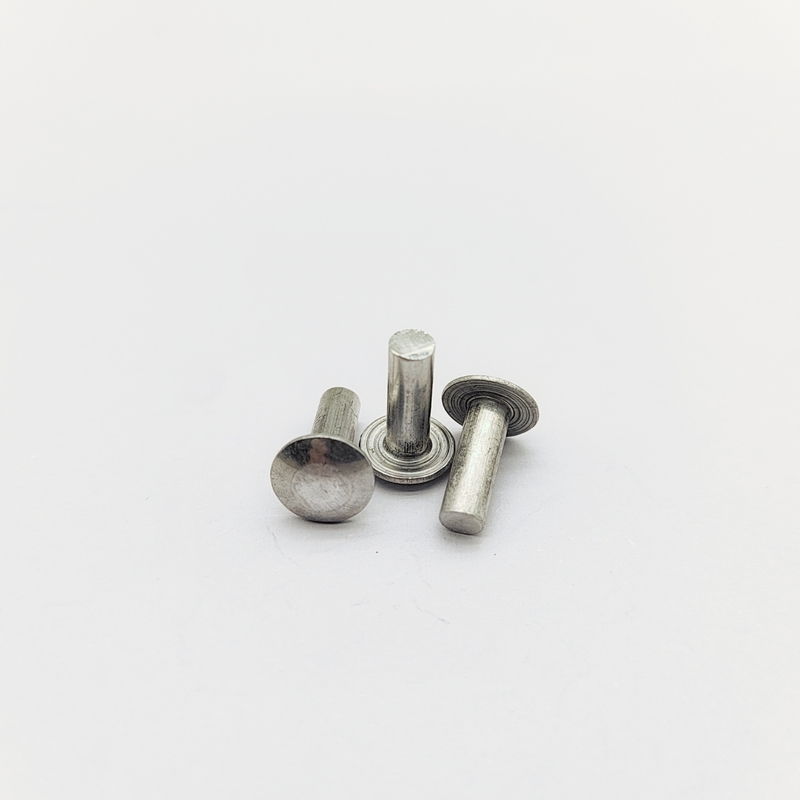

Truss Head Solid Aluminum Rivets 5056 Alloy Anodized Finish
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | Customizable |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Product Application: | Machinery & Equipment | Head Style: | Truss |
|---|---|---|---|
| Thread: | No | Lead Time: | 15~20 Working Days |
| Finsh: | Clear Or Color Anodizing** (Smooth, Hard Finish) | Installation Method: | Riveting |
| Material: | Aluminum Alloy | Tolerant: | +/- 0.05mm |
| Shear Strength: | 1/8" Dia (5056): ~ 310 Lbs | 1/4" Dia (5056): ~ 1,250 Lbs | Tensile Strength: | 1/8" Dia (5056): ~ 370 Lbs | 1/4" Dia (5056): ~ 1,500 Lbs |
| Highlight: | aluminum truss head rivets,5056 alloy anodized rivets,solid aluminum rivets with warranty |
||
Product Description
Truss Head Solid Aluminum Alloy Rivets - Anodized Finish - for Industrial Applications
High-strength aluminum solid rivets with truss head. 5056/6061 alloy, anodized finish. Sizes 3/32" to 1/4". Ideal for machinery, trailers, & structural joints. Corrosion resistant. Custom sizes available.
Our Truss Head Solid Aluminum Rivets offer a permanent, high-strength fastening solution for a wide range of industrial applications. The broad, slightly domed truss head provides a large bearing surface, distributing load effectively and offering excellent resistance to pull-through. Manufactured from high-strength 5056 or 6061 aluminum alloy and finished with a smooth, clear or colored anodized coating, these rivets are lightweight, corrosion-resistant, and offer a clean, professional appearance.
Product Attributes
| Attribute | Value |
|---|---|
| Product Application | Machinery & Equipment |
| Head Style | Truss |
| Thread | No |
| Lead Time | 15~20 working days |
| Finish | Clear or Color Anodizing (Smooth, Hard Finish) |
| Installation Method | Riveting |
| Material | Aluminum Alloy |
| Tolerance | +/- 0.05mm |
| Shear Strength | 1/8" Dia (5056): ~ 310 lbs | 1/4" Dia (5056): ~ 1,250 lbs |
| Tensile Strength | 1/8" Dia (5056): ~ 370 lbs | 1/4" Dia (5056): ~ 1,500 lbs |
Technical Specifications
| Specification | Details |
|---|---|
| Head Type | Truss Head (Low-profile, large diameter dome) |
| Head Diameter (D) | Varies by shank diameter (e.g., 1/4" shank ~ 1/2" head) |
| Shank Diameter (d) | 3/32", 1/8", 5/32", 3/16", 1/4" (Standard Imperial Sizes) |
| Total Length (L) | 1/8" to 2" (Various Grip Lengths) |
| Material | Aluminum Alloy 5056-H32 or 6061-T6 |
| Surface Treatment | Clear or Color Anodizing (Smooth, Hard Finish) |
| Shear Strength | 1/8" Dia (5056): ~ 310 lbs | 1/4" Dia (5056): ~ 1,250 lbs |
| Tensile Strength | 1/8" Dia (5056): ~ 370 lbs | 1/4" Dia (5056): ~ 1,500 lbs |
| Customization | Custom diameters & lengths, specific anodize colors |
Primary Uses & Applications
- Metal Fabrication: Assembling truck bodies, utility trailers, shelving units, and storage containers.
- Machinery & Equipment: Fastening guards, panels, brackets, and components on agricultural and industrial machinery.
- Electrical Enclosures: Securing frames and panels on control boxes and switchgear where non-conductivity is beneficial.
- Marine Hardware: Attaching fittings, hinges, and parts on boats and docks (using 5056 alloy for superior marine corrosion resistance).
- General Repair: Permanently mending toys, furniture, gates, and playground equipment.
How to Use
- Hole Preparation: Drill a clean hole through the materials to be joined. The hole diameter should be very close to the rivet's shank diameter (typically +0.002" to +0.005").
- Insertion: Insert the rivet into the hole. The grip length (length of shank in the hole) should be approximately 1.5 times the shank diameter for optimal strength.
- Support: Place a solid bucking bar (dolly) firmly against the manufactured truss head.
- Upsetting (Bucking): Using a rivet set or a rounded hammer, vigorously hammer the protruding shank end.
- Forming the Shop Head: Continue hammering until the shank end expands to about 1.5 times the original shank diameter.
- Inspection: A properly set rivet will have a symmetrical shop head and the truss head will be tight against the material.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience
- Precise production equipment with imported machinery from Taiwan
- Complete management system with multiple strict quality monitoring processes
- Dedicated account management for seamless collaboration
Support and Services
Our team provides comprehensive support for all aspects of our Aluminum Alloy Solid Rivets, including:
- Selection advice for the right type and size for your project
- Guidance on proper installation techniques
- Detailed product specifications and material safety data sheets
- Troubleshooting assistance for any issues during use
- Maintenance tips and best practices to extend product life
Packing and Shipping
Our Aluminum Alloy Solid Rivets are carefully packaged to ensure perfect condition upon arrival:
- Rivets securely held in moisture-resistant plastic bags inside sturdy cardboard boxes
- Clear labeling with product information for easy identification
- Larger orders palletized, shrink-wrapped, and strapped for maximum protection
- Reliable courier services with tracking information provided
Our factory accepts customized drawings. Please contact us if you require specific certifications or other parameters.
