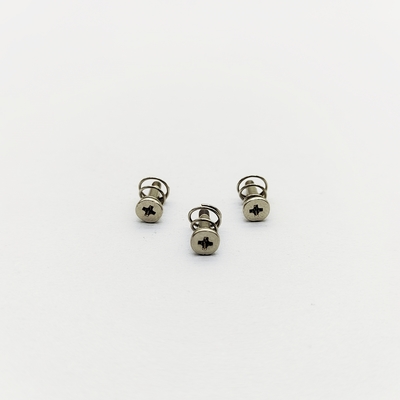

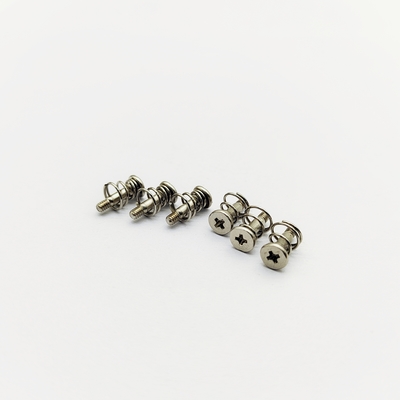

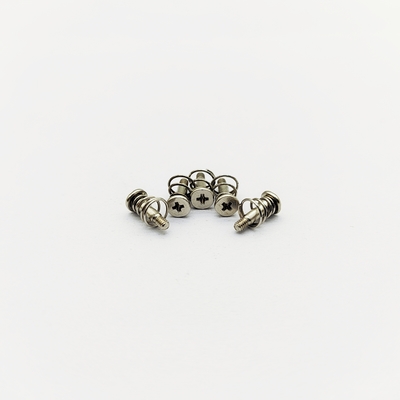

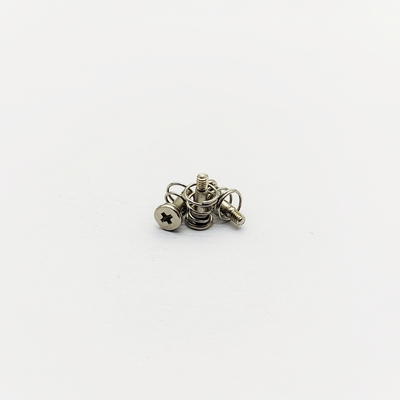

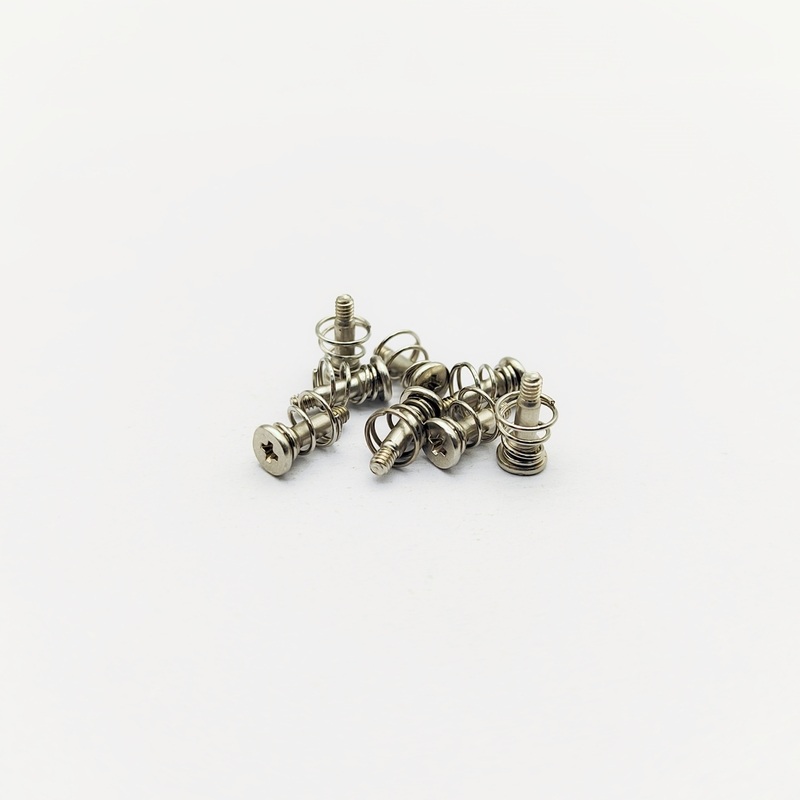

M2 Spring Screws for Heatsinks 10mm Phillips Drive Pack of 1000
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | M2 |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Product Application: | Networking Hardware | Lead Time: | 15~20 Working Days |
|---|---|---|---|
| Finsh: | Zinc Phosphate Coating (Phosphating) | Material: | Carbon Steel |
| Tolerant: | +/- 0.05mm | Specification: | ISO |
| Quantity: | Pack Of 1000 | Samples: | Free Samples |
| Total Length: | 10mm | Thread Type: | Pan Head |
| Load Capacity: | Medium | Drive Type: | Phillips |
| Highlight: | M2 spring screws for heatsinks,Phillips drive spring loaded screws,10mm heatsink screws pack |
||
Product Description
Custom M2 Spring Screws for Compact Heatsinks | 10mm Size, Phillips Drive
Source reliable M2 spring screws for small heatsinks. 10mm overall, 2.5mm thread, phosphating finish. Perfect pressure for SSD/RAM cooling. Request custom sizes & materials.
Designed for precision and reliability, our M2 Heatsink Spring Screws provide the essential controlled clamping force required for effective cooling in modern, miniaturized electronics. The stainless steel spring maintains ideal pressure between the heatsink and IC package, overcoming warping, tolerance stacks, and thermal cycling effects. This results in maximized heat transfer efficiency and enhanced product lifespan for your compact devices.
Technical Specifications
| Specification | Detail |
|---|---|
| Total Length | 10.0 mm (±0.1mm) |
| Thread Length | 2.5 mm (±0.1mm) |
| Thread Diameter | M2 (Metric) |
| Drive Type | Cross Recess (Phillips) |
| Head Style | Low-Profile Pan Head |
| Material | Carbon Steel |
| Spring Material | 304 Stainless Steel |
| Surface Treatment | Zinc Phosphate Coating (Phosphating) |
| Customization | All aspects can be customized, including length, material (e.g., SS410), and plating. |
Primary Uses & Applications
Ideal for applying and maintaining precise mounting pressure in applications including:
- M.2 SSD and NVMe Drive Heatsinks
- Memory Module (RAM) Heat Spreaders
- Small Form-Factor Motherboard Chipset Cooling
- Laptop and Ultrabook Internal Thermal Management
- Networking Hardware (Switches, Routers) Component Cooling
How to Use
For correct installation and optimal performance:
- Confirm the use of M2 threaded standoffs on the PCB.
- Position the heatsink correctly over the component.
- Start each screw by hand to prevent cross-threading.
- Using a controlled torque screwdriver with a Phillips bit, tighten gradually in a star pattern if multiple screws are used.
- The installation is complete when the spring is compressed and the heatsink is secure. Do NOT tighten until the screw driver stalls. The spring must remain functional to apply pressure.
- Verify the heatsink is flat and does not rock.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience, providing cost-effective solutions for your fastener supply chain.
- Precise production equipment with all imported machinery from Taiwan to produce precision screws and hardware accessories. Free samples available for compatibility verification.
- Complete quality management system with multiple strict monitoring checks for every batch of products.
- Dedicated account management for seamless collaboration and system-supporting services.
Support and Services
Our team of knowledgeable professionals provides comprehensive support services for all aspects of our Spring Screws, including:
- Selection advice to ensure you have the right type and size for your project
- Guidance on proper installation techniques
- Detailed product specifications and material safety data sheets
- Step-by-step installation guides and troubleshooting assistance
- Maintenance tips and best practices to extend product life
Packing and Shipping
Our Spring Screws are carefully packaged to ensure perfect condition upon arrival:
- Secured in durable, moisture-resistant plastic bags within sturdy cardboard boxes
- Properly labeled with product information for easy identification
- Larger orders palletized, shrink-wrapped, and strapped securely
- Shipped via reliable courier services with tracking information provided
Our factory accepts customized drawings. Please contact us if you need to highlight specific certifications or other parameters in your order.
