M8 Hex Head Wheel Bolts 13mm Black Stainless Steel Pack of 1000
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | M2 |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Product Application: | Wheel Hub Decorative | Lead Time: | 15~20 Working Days |
|---|---|---|---|
| Finsh: | Black Electroplating | Material: | Stainless Steel (Grade 304 Or 410 Available) |
| Tolerant: | +/- 0.05mm | Specification: | ISO |
| Quantity: | Pack Of 1000 | Samples: | Free Samples |
| Total Length: | 12.3 Mm | Thread Type: | Hex Head (External Hex) |
| Highlight: | M8 hex head wheel bolts,black stainless steel wheel bolts,13mm wheel hub bolts |
||
Product Description

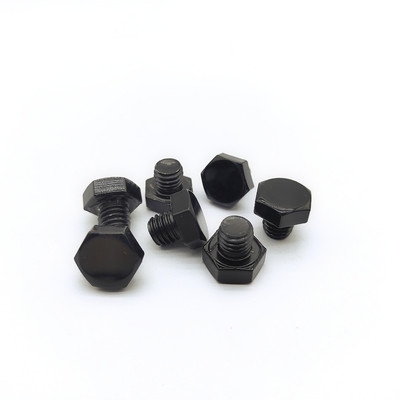

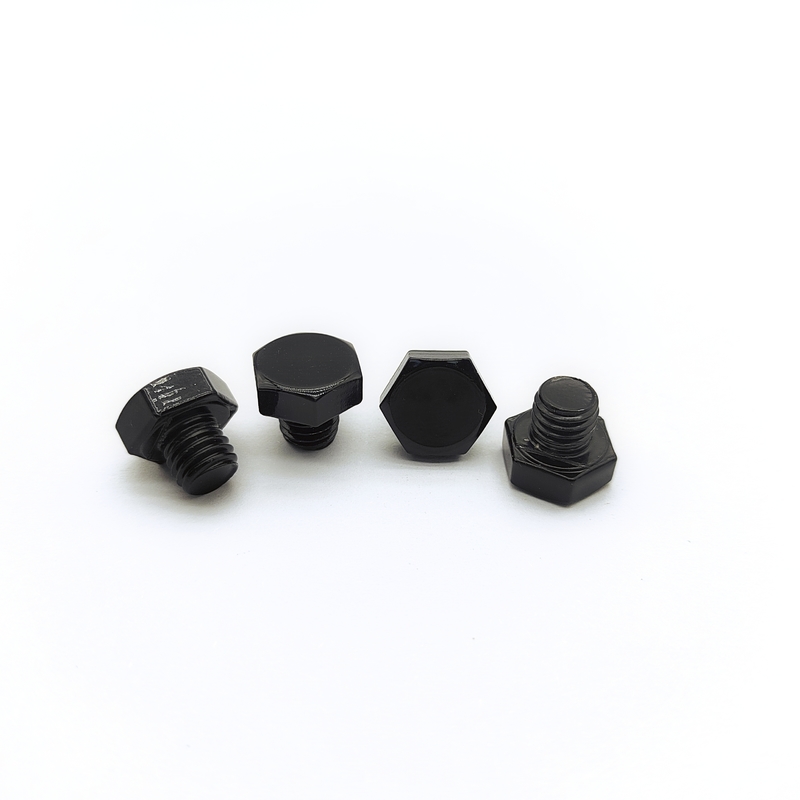

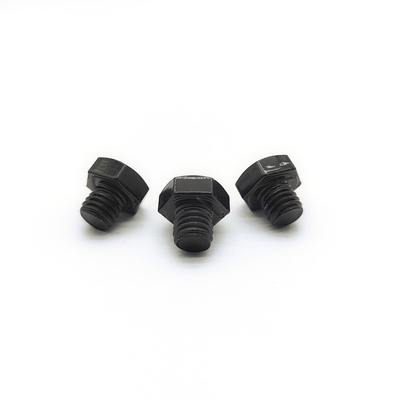

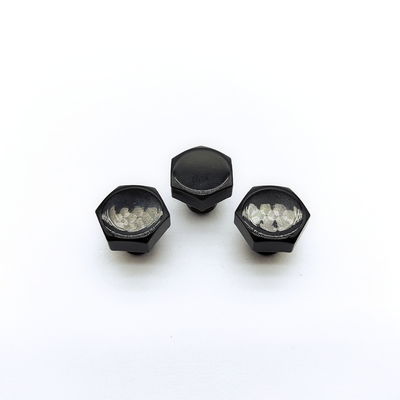

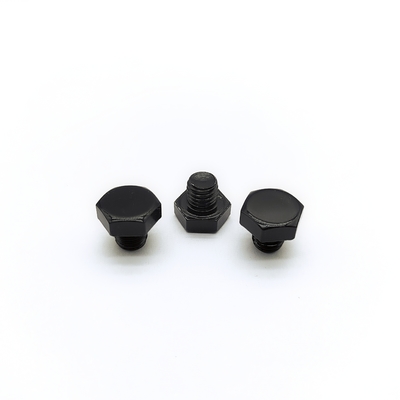

Custom Black M8 Hex Head Wheel Bolts | 13mm Head | Stainless Steel | Decorative
Enhance your wheels with our custom M8 decorative hex bolts. Stainless steel, black electroplated finish, 12.3mm length. Perfect for auto customization. Request a quote today.
Elevate your vehicle's style with our premium decorative hex head bolts. Designed for the discerning auto enthusiast, these M8 bolts combine robust functionality with a striking black finish. Crafted from corrosion-resistant stainless steel and featuring a precise 13mm hex head, they offer a perfect blend of durability, ease of installation, and visual appeal, turning your standard wheel hubs into a custom feature.
Technical Specifications
| Thread Size | M8 x 1.25 mm |
| Total Length | 12.3 mm |
| Thread Length | Fully Threaded (7mm) |
| Head Style | External Hex |
| Head Dimensions | 13.0 mm (Width) x 5.3 mm (Height/Thickness) |
| Material | Stainless Steel |
| Surface Treatment | Black Electroplating |
| Customization | We offer custom lengths, head markings, and alternative finishes. |
Primary Uses & Applications
These bolts serve both aesthetic and functional purposes:
- Automotive Wheel Enhancement: Used as lug bolts on many European and aftermarket alloy wheels where a bolt-on system is employed (instead of studs and nuts).
- Color Matching: Creates a sleek, monochromatic look when paired with black wheels or accents.
- Restoration Projects: Replaces old, rusty, or plain bolts for a fresh, customized appearance.
Important Note: Must be used with wheels that have appropriate mounting holes and chamfers for the bolt head. Verify compatibility.
How to Use
For a safe and successful installation:
- Safety First: Secure the vehicle. Use jack stands. Never work under a vehicle supported only by a jack.
- Tool Preparation: You will need a jack, jack stands, a 13mm socket, and a torque wrench.
- Remove Old Bolts: Lift the vehicle, remove the wheel, and extract the old bolts.
- Clean Threads: Thoroughly clean the threaded holes in the vehicle hub.
- Hand-Start: Carefully thread each new bolt in by hand to ensure they start straight and avoid cross-threading.
- Tighten in Pattern: Once all bolts are started, tighten them gradually in a criss-cross or star pattern. This ensures the wheel is seated evenly.
- Apply Final Torque: Use the torque wrench to tighten the bolts to the exact specification recommended by your vehicle's manufacturer. This step is critical for safety.
- Re-torque: After initial driving, re-check the torque on all bolts.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience, provide you with cost-effective screws, and help you solve the fastener supply chain.
- Precise production equipment. The company introduces all imported equipment from Taiwan to produce precision screws and hardware accessories for you. Provide free sample testing for compatibility verification.
- A complete management system, each batch of products that leave the factory undergoes multiple strict monitoring
- Dedicated account management for seamless collaboration. System-supporting services guarantee you peace of mind.
Support and Services
- If you require technical support or have any questions regarding our wheel bolts, our team of knowledgeable professionals is here to assist you. We provide comprehensive support services for all aspects of our products.
- Our support services include detailed product specifications, material safety data sheets, and step-by-step installation guides. We also offer troubleshooting assistance for any issues that may arise during use.
- For maintenance tips and best practices, our experts are on hand with valuable advice to extend the life and maintain the performance of our wheel bolts.
Packing and Shipping
- Our wheel bolts are packaged with care to ensure they arrive at your location in perfect condition. Each pack contains a specific number of bolts, securely held within a durable, moisture-resistant plastic bag.
- The boxes are sealed and labeled with product information, including the quantity and size of the bolts, for easy identification.
- We ship using reliable courier services to ensure timely and safe delivery. Tracking information is provided for every shipment.
Our factory is able to accept customized drawings. To strike a balance between technical details and customer-centric messaging, please let us know if you need to tweak the description to highlight specific certifications or other parameters!
