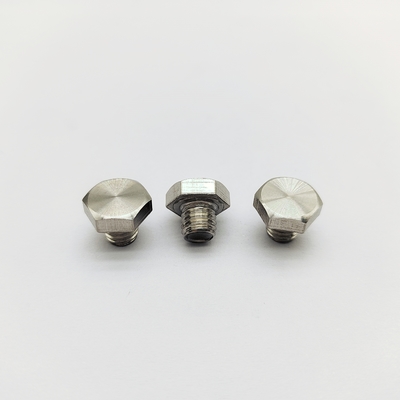

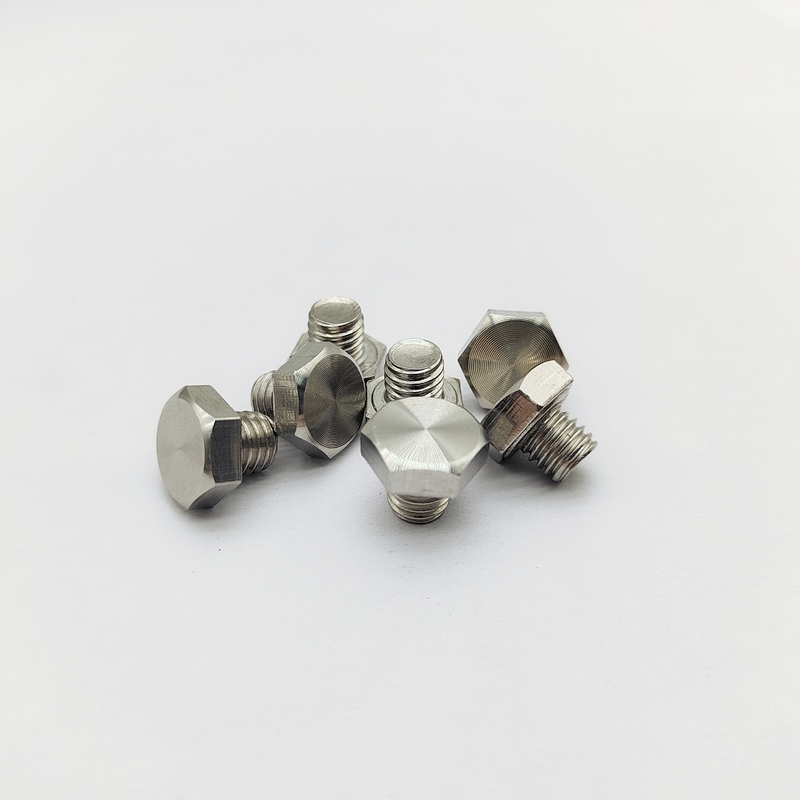

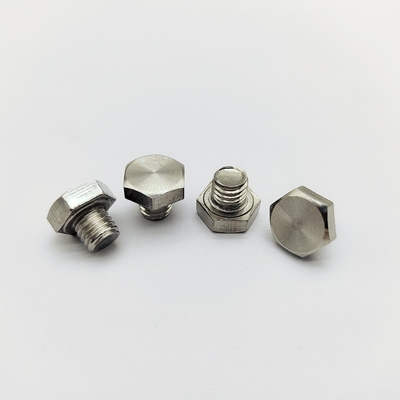

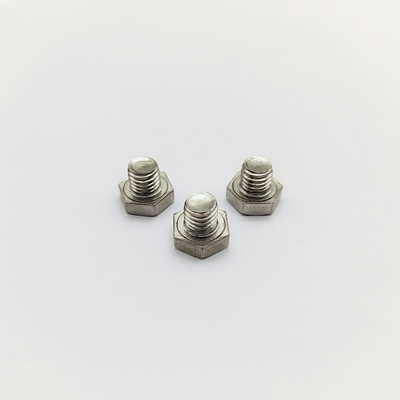

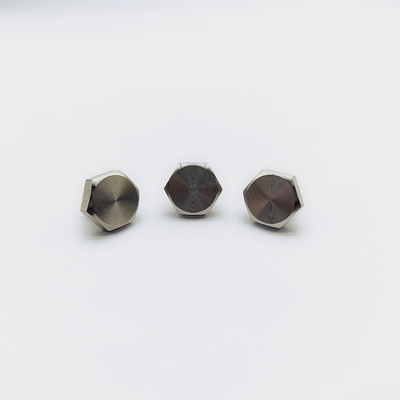

M8 x 7mm Wheel Hub Hex Bolt 13mm Head 304 Stainless Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | M8 |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Product Application: | Wheel Hub Decorative | Lead Time: | 15~20 Working Days |
|---|---|---|---|
| Finsh: | Electroplated Chrome (Silver) | Material: | Austenitic Stainless Steel (AISI 304) |
| Tolerant: | +/- 0.05mm | Specification: | ISO |
| Quantity: | Pack Of 1000 | Samples: | Free Samples |
| Total Length: | 12.3 Mm | Head Type: | Hex Head (External Hex) |
| Highlight: | M8 wheel hub hex bolt,304 stainless steel hub bolt,13mm head wheel hub bolt |
||
Product Description
M8 x 7mm Wheel Hub Decorative Hex Bolt | 13mm Head | Stainless Steel | Chrome Plated
High-quality M8 decorative hex head bolts for wheels. 12.3mm overall length, 13mm head width. Made from 304 stainless steel with a brilliant chrome finish. Custom sizes & finishes available.
Elevate your vehicle's aesthetics with our premium M8 Decorative Wheel Hub Bolts. Engineered from high-grade 304 stainless steel and finished with a brilliant electroplated chrome surface, these bolts combine exceptional corrosion resistance with a stunning, mirror-like appearance. Designed as a direct replacement or upgrade for factory fasteners, they provide a clean, professional, and customized look for your alloy wheels while ensuring reliable performance and durability against the elements.
TECHNICAL SPECIFICATIONS
| Thread Diameter (Major) | M8 (Metric) |
| Thread Pitch | 1.25 mm (Standard) |
| Total Length | 12.3 mm |
| Thread Length | 7.0 mm (Fully Threaded) |
| Head Style | Hex Head (External Hex) |
| Head Dimensions | 13.0 mm (Width) x 5.3 mm (Height/Thickness) |
| Material | Austenitic Stainless Steel (AISI 304) |
| Surface Treatment | Electroplated Chrome (Silver) |
| Customization | Available in various lengths, materials (AISI 316), and finishes (Black Chrome, Powder Coat) |
Primary Uses & Applications
These bolts are specifically designed for cosmetic and functional enhancement on vehicles:
- Primary Use: Securing hubcaps, wheel covers, and decorative center caps to alloy wheels.
- Custom Wheels: Used as short, decorative bolts on multi-piece and custom wheels.
- Automotive Accessorizing: Adding a polished, custom detail to motorcycles, cars, and trucks.
- Industrial Design: Can be used in any application requiring a corrosion-resistant, aesthetically pleasing M8 hex bolt with a low profile.
How to Use
Warning: These are primarily for decorative hubcap and center cap retention. They are not intended for lug nut/bolt applications that secure the entire wheel to the vehicle. Always use OEM-specified lug nuts/bolts for safety-critical wheel mounting.
1. Vehicle Preparation: Ensure the vehicle is parked on a flat, stable surface.
2. Identify Application: Locate the existing bolts securing the hubcap or decorative center cap.
3. Tool Selection: Select a correctly sized 13mm deep-well socket or a standard socket with a thin-wall to ensure proper fit over the bolt head without scratching the finish.
4. Removal: Carefully remove the existing factory bolts by turning counter-clockwise.
5. Installation: Align the hubcap and hand-thread the new decorative bolt clockwise to avoid cross-threading.
6. Tightening: Using a hand tool (ratchet or wrench), tighten the bolt until it is snug and the hubcap is secure. Do not overtighten. The goal is firm contact, not extreme torque. Overtightening can strip the threads in the plastic hubcap or damage the bolt's chrome finish. Recommended torque is typically very low (e.g., 5-10 Nm).
7. Final Check: Ensure all bolts are tightened evenly and the hubcap is seated properly without gaps.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience, provide you with cost-effective screws, and help you solve the fastener supply chain.
- Precise production equipment. The company introduces all imported equipment from Taiwan to produce precision screws and hardware accessories for you. Provide free sample testing for compatibility verification.
- A complete management system, each batch of products that leave the factory undergoes multiple strict monitoring
- Dedicated account management for seamless collaboration. System-supporting services guarantee you peace of mind.
Support and Services
- If you require technical support or have any questions regarding our hex decorative bolts product, our team of knowledgeable professionals is here to assist you. We provide comprehensive support services for all aspects of our hex decorative bolts.
- Our support services include detailed product specifications, material safety data sheets, and step-by-step installation guides. We also offer troubleshooting assistance for any issues that may arise during the use of our hex decorative bolts.
- For maintenance tips and best practices, our experts are on hand with valuable advice to extend the life and maintain the performance of our hex decorative bolts.
Packing and Shipping
- Our hex decorative bolts are packaged with care to ensure they arrive at your location in perfect condition. Each pack contains a specific number of rivets, securely held within a durable, moisture-resistant plastic bag.
- The boxes are sealed and labeled with product information, including the quantity and size of the rivets, for easy identification.
- We ship our hex decorative bolts using reliable courier services to ensure timely and safe delivery. Tracking information is provided for every shipment.
Our factory is able to accept customized drawings. To strike a balance between technical details and customer-centric messaging, please let us know if you need to tweak the description to highlight specific certifications or other parameters!
