M10x1.5 Anti-Vibration Bolt 30mm 316 Stainless Steel Hex Drive
Product Details:
| Place of Origin: | China |
| Brand Name: | guanbiao |
| Certification: | ISO9001 |
| Model Number: | M10 |
| Document: | guanbiao hardware PPT(new)P...DF.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic bag + carton + pallet |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000000 |
|
Detail Information |
|||
| Product Application: | Vibration-Prone Environments | Lead Time: | 15~20 Working Days |
|---|---|---|---|
| Finsh: | Integrated Anti-Separation Design | Material: | AISI 316 / A4-70 Stainless Steel |
| Tolerant: | +/- 0.05mm | Specification: | ISO |
| Quantity: | Pack Of 1000 | Samples: | Free Samples |
| Total Length: | 30.0 Mm | Head Type: | Cylindrical Head |
| Drive Type: | Hex Socket (Internal Hex) | ||
| Highlight: | M10x1.5 wheel hub bolt,316 stainless steel hex bolt,anti-vibration wheel hub bolt |
||
Product Description

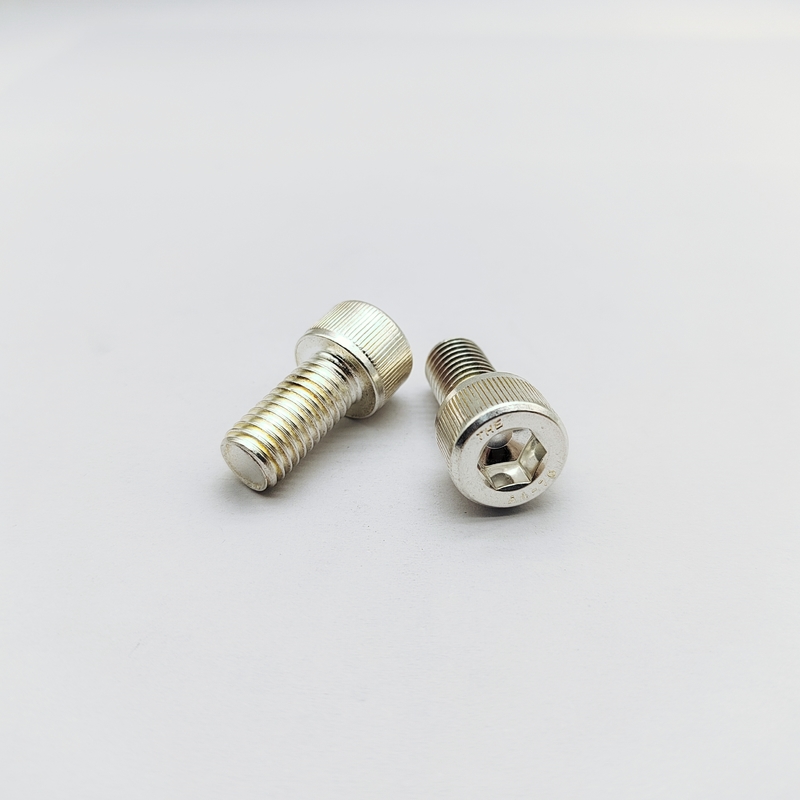

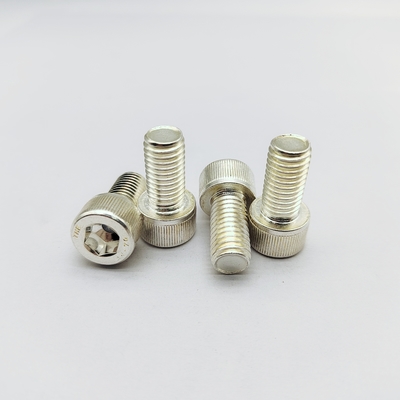

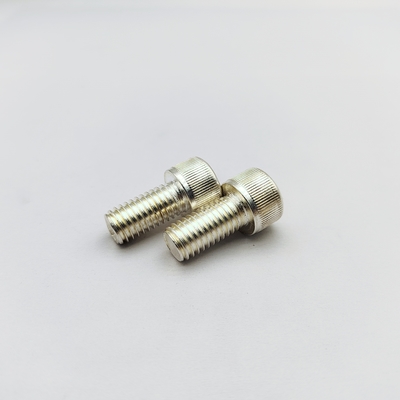

M10x1.5 Anti-Vibration Bolt | 30mm Length | 316 Stainless Steel | Hex Drive
Secure your machinery with M10x1.5 anti-separation bolts. 30mm overall, 21mm thread, 316 stainless steel with hex socket. Ideal for high-vibration environments. Custom orders welcome.
Engineered for reliability in the most challenging conditions, our M10 Anti-Separation Bolts provide a secure, permanent fastening solution that eliminates the risk of dropped components and loose fasteners. The combination of a knurled cylindrical head for easy handling and a robust internal hex drive for high torque capability makes this bolt ideal for maintenance and production lines. The A4-70 stainless steel construction ensures maximum resistance to corrosion, chemicals, and moisture, guaranteeing a long service life.
Technical Specifications
| Thread Size | M10 x 1.5mm Pitch |
| Total Length | 30.0 mm |
| Thread Length | 21.0 mm (Fully Threaded) |
| Head Style | Cylindrical with Knurled Grip |
| Head Size | 16.0 mm (Width) x 9.0 mm (Height) |
| Drive Type | 8mm Hex Socket (Allen) |
| Material | AISI 316 / A4-70 Stainless Steel |
| Surface Treatment | Integrated Anti-Separation Design |
| Customization | Tailor-made lengths, materials, and finishes available. |
Primary Uses & Applications
These captive screws are designed for use in:
- Machine Access Panels and Guards: Allows for quick removal for service while ensuring the bolt stays captive in the panel.
- Vibration-Prone Environments: Automotive engine compartments, material handling equipment, and power tools.
- Food and Pharmaceutical Equipment: 316 stainless steel is ideal for environments requiring cleanliness and corrosion resistance.
- Outdoor and Marine Applications: Where corrosion and weather could compromise standard fasteners.
How to Use
Important: The anti-separation feature is designed to work with a specific range of panel thicknesses. Confirm compatibility before installation.
- Panel Preparation: The bolt is typically installed into a pre-tapped hole or a floating nut plate on the machine frame.
- Insertion into Panel: The bolt is inserted into the clearance hole of the panel or guard. The anti-separation mechanism prevents it from passing through.
- Alignment: Align the panel so the captive bolt lines up with the threaded receiving hole.
- Tightening: Insert an 8mm Allen key and tighten the bolt until the panel is securely fastened. The knurling on the head allows you to hold it steady while tightening.
- Removal (For Service): To remove the panel, simply unscrew the bolt. It will remain attached to the panel, preventing loss and simplifying reassembly.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience.
- Precise production equipment with all imported equipment from Taiwan to produce precision screws and hardware accessories.
- Complete management system with multiple strict monitoring for each batch of products.
- Dedicated account management for seamless collaboration and system-supporting services.
Support and Services
Our team of knowledgeable professionals provides comprehensive support services for all aspects of our Cylindrical Head Hex Socket Bolts. From selection advice to installation guidance and troubleshooting assistance, we're committed to ensuring your project's success.
Packing and Shipping
Our Cylindrical Head Hex Socket Bolts are packaged with care in moisture-resistant plastic bags within sturdy cardboard boxes. Larger orders are palletized and shrink-wrapped for secure transport. We use reliable courier services with tracking information provided for all shipments.
Our factory is able to accept customized drawings. Please let us know if you need to tweak the description to highlight specific certifications or other parameters!
